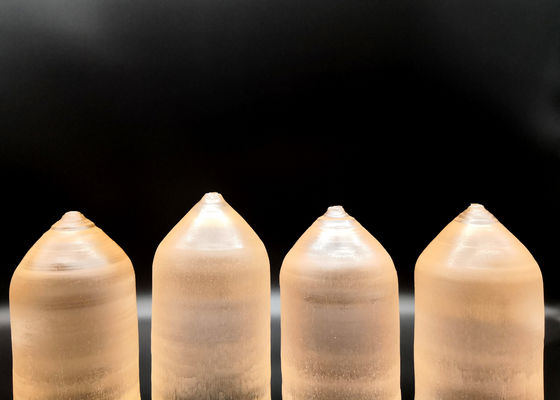

Magneto Optical Material TGG Single Crystal Optical Isolator In Fiber Laser

Magneto Optical Material TGG Single Crystal Optical Isolator In Fiber Laser
Magneto Optical Material TGG Single Crystal Optical Isolator In Fiber Laser Magneto Optical Material TGG Single Crystal Optical Isolator In Fiber Laser Magneto Optical Material TGG Single Crystal Optical Isolator In Fiber Laser

Large Image :  Magneto Optical Material TGG Single Crystal Optical Isolator In Fiber Laser

Product Details:

Place of Origin: CHINA
Brand Name: Crystro
Certification: SGS/ROHS/REACH
Model Number: CR201231-01

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: USD 20-100/pc
Packaging Details: Transparent clean box
Delivery Time: 4-5 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10000pcs per week
Detailed Product Description
Material: TGG Single Crystal Application: Optical Isolator
Chemical Formular: TB3Ga5O12 Verdet Constant: 40 Rad T-1 M-1
Optical Loss: <0.1%/cm Thermal Conductivity: 7.4W M-1 K-1
Laser Damage Thereshold: >1GW/cm2 Growth Method: Czochralski
High Light:

gadolinium gallium garnet

,

ggg substrate

Magneto Optical Material TGG Single Crystal Optical Isolator In Fiber Laser



Description:

The magneto-optical crystal TGG crystal is key material for free space faraday isolator. It's an optimum material for Faraday devices (Rotator and Isolator) in the wavelength range 400 nm-1100 nm, excluding 470-500 nm. TGG crystal has a combination of excellent properties such as large Verdet constant, low light loss, high thermal conductance and high light damage threshold which makes it a unique material for Faraday devices.



Features:

Large Size Boule Diameter: up to 3”

Extinction Ratio Typical: >35 dB  High Grade: >40 dB

Verdet Constant 40 rad/T/m at 1064 nm

Refractive Index 1.95 at 1064 nm



Applications:

Faraday Rotator;

Free Space Isolator;



RoHS Document:



TGG REACH-English.PDF





Main Properties:

Chemical Formula TB3Ga5O12
Lattic Parameter a=12.355Å
Growth Method Czochralski
Density 7.13g/cm3
Mohs Hardness 8.0
Melting Point 1725℃
Refractive Index 1.954 at 1064nm



CRYSTRO supply TGG crystal with:

Orientation [111] within ±15 arc min
Wave Front Distortion <1/8 wave
Extinction Ratio >35dB
Diameter Tolerance +0.00mm/-0.05mm
Length Tolerance +0.2mm/-0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 5 arc min
Surface Quality 10/5 Scratch/Dig
AR Coating <0.2%
Large Dimensions of Crystals 2.0--76 mm in diameter
