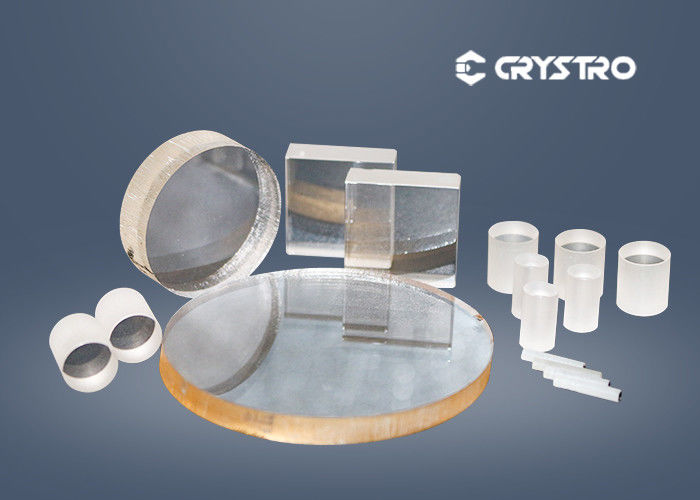

Isolator Devices Customized TGG Magneto Optic Materials

Isolator Devices Customized TGG Magneto Optic Materials
Isolator Devices Customized TGG Magneto Optic Materials

Large Image :  Isolator Devices Customized TGG Magneto Optic Materials

Product Details:

Place of Origin: China
Brand Name: Crystro
Certification: SGS/ROHS/REACH
Model Number: JCR200615-03

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10000pcs per week
Detailed Product Description
Material: TGG Diameter: 2.8mm/5mm/2.3mm
Diameter Tolerance: +0/-0.05mm Length Tolerance: +/-0.2mm
Extinction Ratio: Up To 40dB Surface Quality: 10-5
AR Coating: <0.2% Wave Front Distortion: <1/8 Wave
High Light:

TGG Magneto Optic Materials

,

TGG Crystal Rod

Customized TGG Crystal Rod For Isolator Devices Dia 2.8mm Dia 5mm Dia 2.5mm



Description:



Terbium gallium garnet (Tb3Ga5O12, TGG) is a crucial category of magneto-optical materials for use in the visible and the near-infrared spectral regions((400-470nm and 500-1500nm)). The TGG crystal possesses a large Verdet constant (35 RadT−1m−1 at 1064 nm), high thermal conductivity (7.4 Wm−1K−1), low optical losses (< 0.1%/cm) and high laser damage threshold (> 1 GW/cm2). Therefore, it is an attractive Faraday-rotating crystal suitable for constructing magneto-optical isolators, magneto-optical switches, magneto-optical modulators and so on,widely used in YAG, Ti-doped sapphire and other multi-stage amplification, ring type, seed injection laser





Features:

  • Large Verdet Constant (Typical 35 dB,Up to 40dB)
  • Low optical losses (<0.1%/cm)
  • High laser damage threshold (>1GW/cm2).
  • TGG has twice the Verdet constant of a terbium-doped glass.
  • Thermal conductivity is an order of magnitude greater than typical glass.
  • Optical losses are lower for TGG than Tb-doped glasses



Applications:

  • Faraday Rotator;

  • Magnetic sensor



Main Properties:

Chemical Formula TB3Ga5O12
Lattic Parameter a=12.355Å
Growth Method Czochralski
Density 7.13g/cm3
Mohs Hardness 8.0
Melting Point 1725℃
Refractive Index 1.954 at 1064nm





CRYSTRO supply TGG crystal with:



Orientation [111] within ±15 arc min
Wave Front Distortion <1/8 wave
Extinction Ratio >35dB
Diameter Tolerance +0.00mm/-0.05mm
Length Tolerance +0.2mm/-0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 5 arc min
Surface Quality 10/5 Scratch/Dig
AR Coating <0.2%
Large Dimensions of Crystals 2.0--76 mm in diameter
