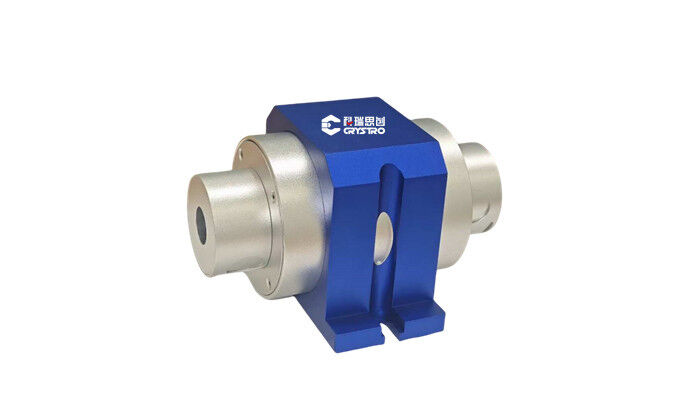

free space Dia 3mm 400nm Customized Faraday Isolator

free space Dia 3mm 400nm Customized Faraday Isolator
free space Dia 3mm 400nm Customized Faraday Isolator

Large Image :  free space Dia 3mm 400nm Customized Faraday Isolator

Product Details:

Place of Origin: China
Brand Name: Crystro
Certification: SGS/COC
Model Number: CR201105-01

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Carton Package
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Detailed Product Description
Center Wavelength: 400nm-1064nm Aperture: 3mm-12mm
Isolation: >35dB Transmission: >93%
Tunable Temperature: 10-30℃ Temperature: -20-70℃
Typical Insertion Loss: 0.3 DB Material: TGG/TSAG
High Light:

Dia 3mm Faraday Isolator

,

400nm Faraday Isolator

,

Dia 3mm free space isolator

Customized Free Space Optical Isolator



Our free-space optical isolator (Faraday isolator) and Faraday rotator selection includes a wide range of wavelengths, from 400nm-1064nm , with typical isolation as high as 40 dB (single stage), and 75 dB (dual stage).  We can offer a broadband optical isolator as required also single point wavelength. Most of our optical isolators are available with a choice of low, medium or high power capability.





Applications:



Maintain the light's linear polarizaton

Avoide deleterious effects of back reflectons in laser diodes

Eliminate instability in amplified laser systems caused by ASE

Reduce Nd and Yb oscillations from ASE created by amplifiers



Features:



  • Superior Performance and Reliability
  • High Isolation / Low Insertion Loss
  • High Power Models with Exit Ports for
    Return Signal Monitoring or Beam Injection
  • Customized size and wavelength



Specifications:

Dia3.5mm Isolator.pdf

free space Dia 3mm 400nm Customized Faraday Isolator 0



  UV VIS NIR IR
Center Wavelength 355nm 405-980nm 1030,1064nm 1319,2000,4500nm
Operating Wavelength Range ≥±10nm ≥±10nm ≥±15nm ≥±10nm
Peak Transmission >93% >90% >92% >90%
Peak Isolation >35dB >35dB >30dB >35dB
M2 Degradation <10% <10% <10% <10%
Clear Aperture 3,4mm or others 3,4mm or others 2,3,4,5,8,10,12 or others 3,4mm or others
Optical Power(Average) 1,5,10W or Specify 10,30,50W or Specify 10,30,50,100W or Specify 10,30,50W or Specify
Damage Threshold 3.5J/cm2@ 10ns 3.5J/cm2@ 10ns 10J/cm2@ 10ns 5J/cm2@ 10ns
Storage Temperature Range -20-70℃
Tunable Temperature Range 10-30℃
