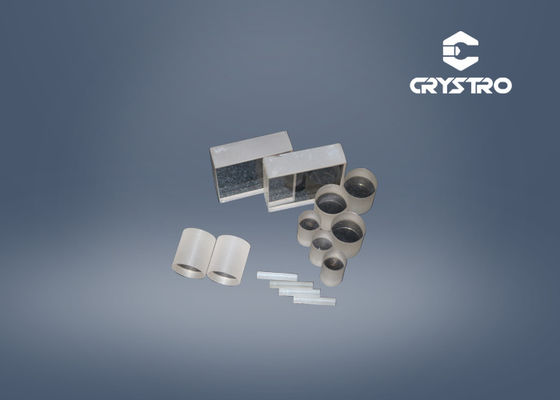

35dB 7.13g/Cm3 Faraday Rotator TGG Magneto Optical Crystals

35dB 7.13g/Cm3 Faraday Rotator TGG Magneto Optical Crystals
35dB 7.13g/Cm3 Faraday Rotator TGG Magneto Optical Crystals
video play

Large Image :  35dB 7.13g/Cm3 Faraday Rotator TGG Magneto Optical Crystals

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS/ROHS/REACH
Model Number: JCR201224-02
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10000pcs per week
Detailed Product Description
Material: TGG Crystal Diameter: Min 1mm
Extinction Ratio: 35dB Place Of Origion: Anhui,China
Lattic Parameter: A=12.355Å Chemical Formula: TB3Ga5O12
Density: 7.13g/cm3 Growth Method: Czochralski
High Light:

35dB TGG Crystals

,

7.13g/cm3 TGG Crystals

,

Faraday Magneto Optical Crystals

High Thermal Conductivity Faraday Rotator TGG Crystal

Faraday polarizer is composed of the TGG crystal rod and a specially designed magnet. The polarization of the beam through the magneto-optical materials deflexed and direction of the deflection only has some relations with the direction of the magnetic field and has nothing to do with the direction of the beam propagation. An optical isolator is an optical component which allows the transmission of polarized light in only one direction.



Applications:

  • Faraday Rotator

  • Faraday polarizer

  • Magnetic sensor

  • Faraday Isolator



Main Properties:

Chemical Formula TB3Ga5O12
Lattic Parameter a=12.355Å
Growth Method Czochralski
Density 7.13g/cm3
Mohs Hardness 8.0
Melting Point 1725℃
Refractive Index 1.954 at 1064nm





CRYSTRO supply TGG crystal with:



Orientation [111] within ±15 arc min
Wave Front Distortion <1/8 wave
Extinction Ratio >35dB
Diameter Tolerance +0.00mm/-0.05mm
Length Tolerance +0.2mm/-0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 5 arc min
Surface Quality 10/5 Scratch/Dig
AR Coating <0.2%
Large Dimensions of Crystals 2.0--76 mm in diameter



Advantages:

  • Large Verdet Constant (Typical 35 dB,Up to 40dB)
  • Low optical losses (<0.1%/cm)
  • High laser damage threshold (>1GW/cm2).
  • TGG has twice the Verdet constant of a terbium-doped glass.
  • Thermal conductivity is an order of magnitude greater than typical glass.
  • Optical losses are lower for TGG than Tb-doped glasses
