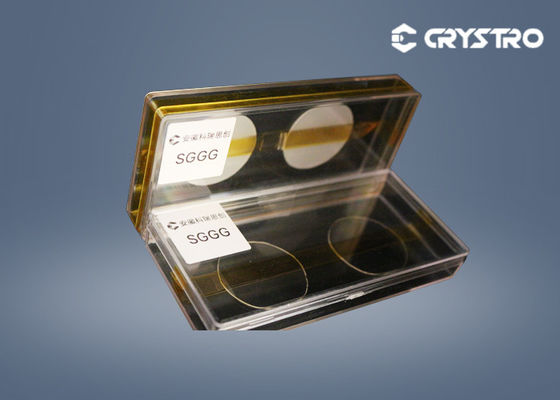

7.09g/Cm3 Substituted Gadolinium Gallium Garnet GSGG Single Crystal Wafer

7.09g/Cm3 Substituted Gadolinium Gallium Garnet GSGG Single Crystal Wafer
7.09g/Cm3 Substituted Gadolinium Gallium Garnet GSGG Single Crystal Wafer
video play

Large Image :  7.09g/Cm3 Substituted Gadolinium Gallium Garnet GSGG Single Crystal Wafer

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS/ROHS
Model Number: CR210127-04
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Transparent clean box
Delivery Time: 4-5weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000pcs per month
Detailed Product Description
Material: Substituted Gadolinium Gallium Garnet GSGG Single Crystal Wafer Maximum Size: 4 Inch Diameter
Lattice Constant: 12.497A Density: 7.09g/cm3
Place Of Origin: Anhui, China Warranty:: 1 Year
After-sales Service: Video Technical Support, Online Support Test Report:: Provided
High Light:

7.09g/cm3 single crystal wafer

,

GSGG single crystal wafer

,

7.09g/cm3 GSGG Wafer

Substituted Gadolinium gallium garnet GSGG Single Crystal Wafer

Substituted Gadolinium gallium garnet(GGG) is a special substrate magneto optical flims. In optical commuication equipment, a large number of 1.3 and 1.5 micron optical isolators are needed, and the core component is YIG or BIG film placed in the magnetic field. Different tangential GGG single crystal substrates can be matched with the lattice of such magneto-optical materials, thus ensuring the successful epitaxial growth of YIG and BIG films.

Anhui Crystro has perfect automatic production and inspection equipments, the current products are mainly concentrated in the
Nd:YAG,TGG, TSAG,GGG, LaAlO3,LGS,Ce:GAGG ,Ce:YAG and Ce: LuYAG production,the application of advanced process technology of manufacturing.
We established a crystal research center and keeps developing new crystals. We provide technical support and training for our domestic and overseas customers




Product Name: SGGG single crystal substrate
Technical parameters: Chemical Formular Substituted GGG
Lattice Formular 12.497A

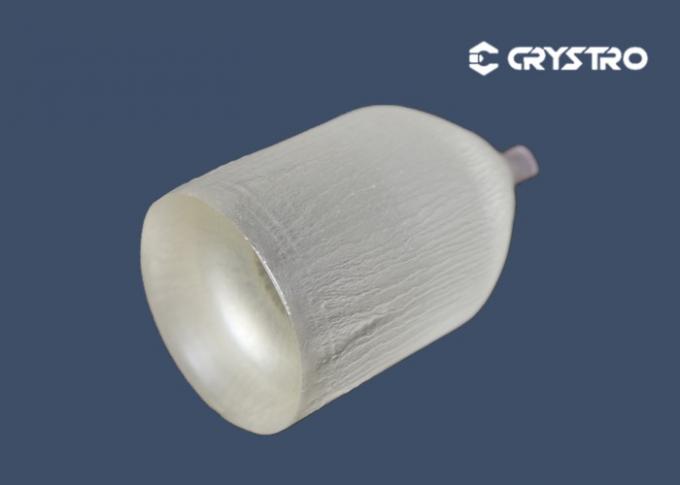

Growth Method Czochralski
Mohs Hardness 7.5
Melting Point 1730° C
Purity > 99.99%
Density 7.09g/cm3
Surface roughness Optically polished side up <100A
Polish single or double side polish
Orientation <111>+0.2°
Refractive Index 1.954 at 1064nm
Specifications: <100>, <110>, <111> Tolerance: + / -2 degrees
10x10x1.0mm; 20x20x1.0mm;3" diameter x 0.5mm;4" diameter x 0.5mm...
Can be customized orientation and size.
Standard Packaging: 1000 clean room, 100 clean bag or single box packaging
Storage Instructions: Since the metal is easily oxidized, please vacuum storage, use within one month.


CRYSTRO supply GGG crystal with:



Orientation <111> <100> within ±15 arc min
Wave Front Distortion <1/4 wave@632
Diameter Tolerance ±0.05mm
Length Tolerance ±0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 15 arc min
Surface Quality 10/5 Scratch/Dig
Clear Apereture >90%

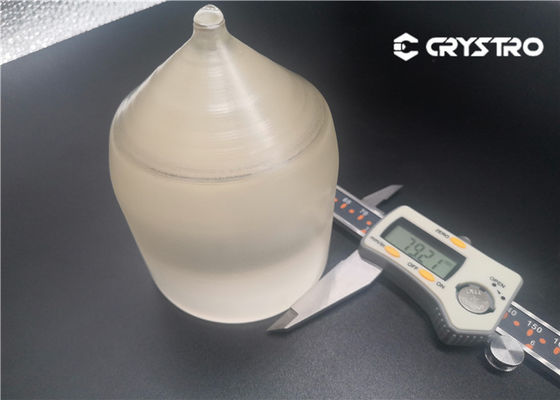

Large Dimensions of Crystals 2.8-76 mm in diameter



Application:


SGGG is used as substrates for liquid epitaxy.It's dedicated substrates for magneto-optical film.
