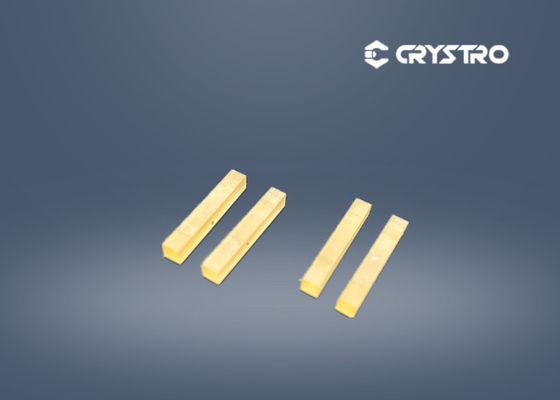

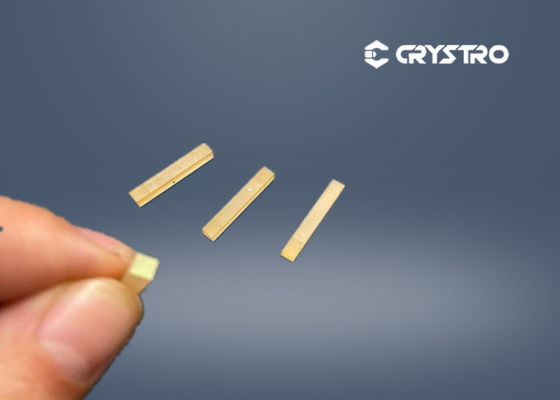

3X3X20mm AR 1064nm Langasite Piezoelectric Effect Crystals La3Ga5SiO14

3X3X20mm AR 1064nm Langasite Piezoelectric Effect Crystals  La3Ga5SiO14
3X3X20mm AR 1064nm Langasite Piezoelectric Effect Crystals  La3Ga5SiO14 3X3X20mm AR 1064nm Langasite Piezoelectric Effect Crystals  La3Ga5SiO14

Large Image :  3X3X20mm AR 1064nm Langasite Piezoelectric Effect Crystals La3Ga5SiO14

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CR210520-01
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 2-4 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 2000pcs per month
Detailed Product Description
Material: 3X3X20mm AR 1064nm Piezoelectric Materials La3Ga5SiO14 Single Crystal (LGS) Diameter: 3X3X20mm
Type: Crystal Bar Coating: AR 1064nm,custom
Growth Method: Czochralski Melting Point: 1470℃
Origin: China After-sales Service: Video Technical Support, Online Support
High Light:

AR 1064nm Piezoelectric Effect Crystals

,

Langasite Piezoelectric Effect Crystals

,

AR 1064nm Langasite Crystals

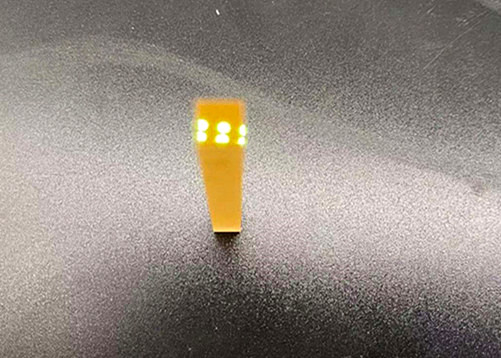

3X3X20mm AR 1064nm Piezoelectric Materials La3Ga5SiO14 single crystal (LGS)


Langasite crystal (La3Ga5SiO14,LGS), belonging to the space group P321, point group 32, has been reported to be promising new piezoelectric materials for fabrication of surface acoustic wave (SAW) and bulk acoustic wave (BAW) devices. The devices made of langasite crystal could be used at a high temperature up to 900℃ because of its high thermal stability.

a.Crystro's LGS crystal has High thermal stability,low equivalent series resistance ratio and electro-mechanical coupling coefficient is 3-4 times than quartz.


b.Crystro's LGS wafer is grown by Czochralski method.Max diameter reach 60mm.Crytsro can custom size and cutting direction accordding to customer's needs,Our standard size including LGS Crystal bar: 3x3x20mm,4x4x50mm,5x5x45mm... LGS Crystal wafer: D2inchx0.5mm,D50x0.5mm,40x40x0.5mm...Piezoelectric crystal including LGS,LN,LT,BBO,DKDP are CRYSTRO's main prodcuts..



Main Properties:


Point group32
Airborne groupP32I
specific resistance4.0×1012Ω/cm-1
Thickness0.13-0.5mm
Diameter50mm
Length90-100mm
Melting point1470
Density5.67g/cm3
Mohs hardness5.5
Thermal expansion coefficientaa=16×10-6/K, ac=4×10-6/K
Photo damage threshold670MV/cm2
Cell Parametersa=b=0.8162nm,c=0.5087nm
Dielectric constantε11=18.27
ε33=55.26
Electro-optical coefficientsγ11=2.3×10-12m/V
γ33=1.8×10-12m/V
Piezoelectric strain constantd11=6.3
(10-12)C/Nd14=-5.4
Phase velocity,m/s27502850
Electromechanical coupling coefficient, K[ %]0.280.46
SolubilityNone
Coefficient of thermal expansionα11=5.15×10-6K-1

α33=3.65×10-6K-1


Features:


  • High damage threshold

  • Good optical rotation

  • Can withstand high and low temperature changes

  • Stable physical and chemical properties

  • High electromechanical coupling coefficient (3 times of quartz)

  • Low equivalent series resistance

  •

  • Applications:


  • electro-optic Q-switch

  • SAW device

  • BAW device

  • Sensor

  • High power high repetition rate all solid state laser

  • High and low temperature change laser


DOCUMENT:
LGS Cryatal.pdf
