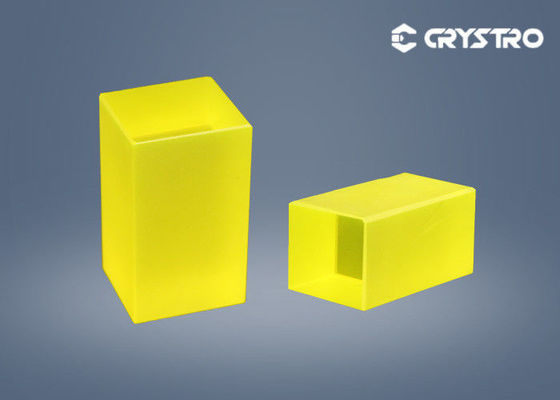

Laser Part GAGG Doped Ce Scintillation Detector For Medical Imaging

Laser Part GAGG Doped Ce Scintillation Detector For Medical Imaging
Laser Part GAGG Doped Ce Scintillation Detector For Medical Imaging Laser Part GAGG Doped Ce Scintillation Detector For Medical Imaging

Large Image :  Laser Part GAGG Doped Ce Scintillation Detector For Medical Imaging

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: ISO9001,RoHS,Reach
Model Number: CR210628-03
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD 20-200/pc
Packaging Details: Transparent clean box
Delivery Time: 4-5 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000pcs per month
Detailed Product Description
Material: Laser Part GAGG Doped Ce Scintillation Detector For Medical Imaging Chemical Formular: Gd3Al2Ga3O12
Growth Method: Czocharalski Density: 6.63g/cm3
Mohs Hardmess: 8 Melting Point: 1850℃
Orientation Tolerance: <0.5° Size Tolerance: ±0.05mm
Paralle: 10‘’ Perpendicular: 5’
Surface Quality: 10/5 Clear Aperture: >90%
Charmfer: <0.2x45° Max Dia: D60-76.2 Mm
Application: PET,SPECT,CT..
High Light:

Doped Ce gagg scintillator

,

Medical Imaging yag scintillator

,

Medical Imaging gagg scintillator

Laser Part GAGG Doped Ce Scintillation Detector For Medical Imaging





GAGG(Ce) (Ce:GAGG, Gd3Al2Ga3O12) is new scintillator for single photon emission computed tomography(SPECT), gamma-ray and compton electron detection. Cerium doped GAGG have many properties that make it suitable for gamma spectroscopy and medical imaging applications. A high photon yield and emission peak around 520 nm makes the material well suited to be readout by Silicon Photo-multiplier detectors.



Ce: GAGG crystal (chemical formula Ce: Gd3Al2Ga3O12, also known as cerium-doped gadolinium aluminum gallium garnet crystal) is a scintillation crystal with excellent comprehensive performance, which is widely used in scientific research and industrial high-energy ray detection. Ce: The effective atomic number of the GAGG crystal is as high as 54.4, and the peak wavelength of the emission spectrum located at 520nm, which matches well with the sensitive wavelength range of the photomultiplier tube (PMT) and silicon photodiode (PD).



Anhui Crystro participate in the kinds exhibitions every year: Laser World of Photonics Munich, Shanghai, Photonics West in San Francisco, CIOE in Shenzhen, etc.





Main Advantages:



1. Relatively bright – emitting >50,000 photons/MeV

2. Good absorbers with good stopping powers - density 6.63 g/cm³

3. Broadly emitting with a 540nm peak

4. Good Energy resolution



Main Applications:





γ-ray detection
X-ray medical imaging
Nuclear physics
Nuclear radiation detection
PET

Main Properties:



Properties Units
Wavelength (Max. Emission) 520 nm
Wavelength Range 475 - 800 nm
Decay Time 50 - 150 ns
Light Yield 40 - 60 photons/keV
Refractive Index 1.9 @540nm
Density 6.63 g/cm³
Atomic Number (Effective) 54.4
Melting Point 1850 ºC
Thermal Expansion Coeff. TBA x 10‾⁶ C¹
Hardness 8 Mhos



Property Ce:GAGG
Chemical composition Gd3AlxGa5-xO12
Symmetry Cubic
Structure Ia3d
Mohs Hardness 8
Density(g/cm3) 6.63
Refractive index(λ=550nm) 1.9
Emission peak (nm) 540
Light yield (Photons•Mev-1) >50000
Decay time(ns) 90
Energy resolution <6%
Zeff 54
