Magneto Optical Crystals
Created with Pixso. High Performance Synthetic Crystalline Material TSAG Faraday Crystal For Faraday Rotator And Isolator

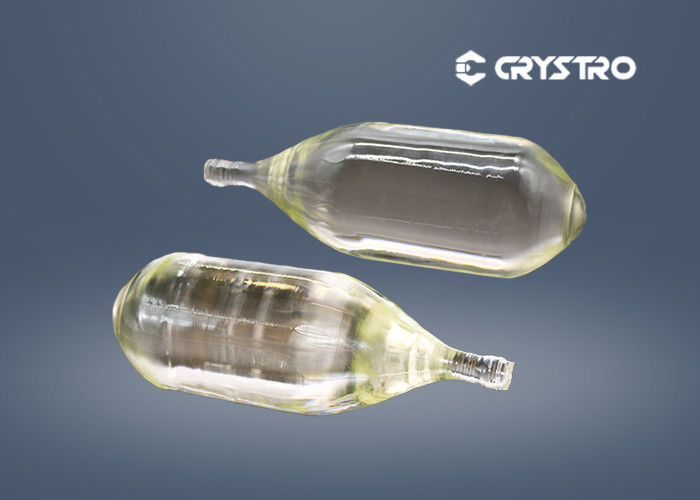

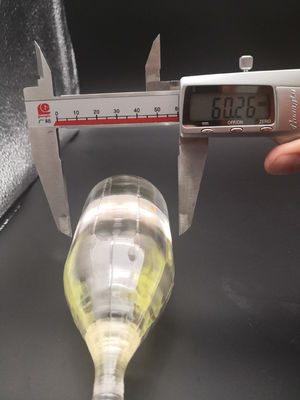

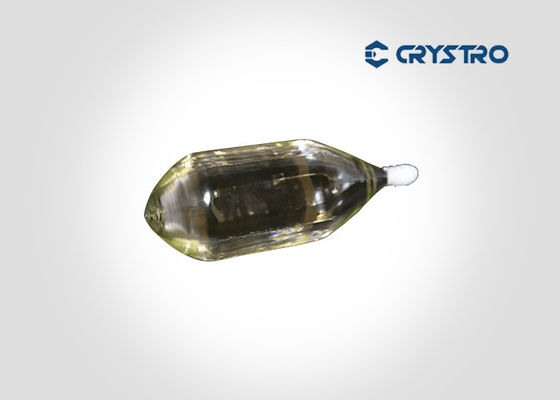

High Performance Synthetic Crystalline Material TSAG Faraday Crystal For Faraday Rotator And Isolator

Brand Name: Crystro
Model Number: CR1909
MOQ: 1
Price: Customized
Delivery Time: 2-3 weeks
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
Rosh
Model:
CR1909
Feature:
High Performance
Name:
TSAG Faraday Crystal
Type:
Synthetic Crystalline Material
Application:
For Faraday Rotator And Isolator
Certification:
Rosh/Reach
Verdet Constant:
20% Higher Than TGG
Absorption:
<3000PPM/cm@1064nm
Packaging Details:
as required
Supply Ability:
1000pcs/month
Highlight:

gadolinium gallium garnet

,

ggg substrate

,

TSAG Faraday Crystal

Product Description

TSAG crystal High Performance for Faraday rotator and isolator better than 38dB



TSAG Faraday crystal is used in the range of 400-1600nm wavelength .

Compared with TGG, it has a larger Verdet constant(20% higher than TGG) and a lower absorption coefficients (30% lower than TGG).

TSAG is an indispensable crystal for next generation high power lasers.



Key Features



1. Verdet constant 20% higher than TGG(48radT-1m-1 at 1064nm)

2. Absorption 30% lower than TGG(<3000ppm/cm at 1064nm)

3. Make your isolator small





Main Properties



Property Value
Chemical Formula Tb3Sc2Al3O12
Lattice Parameter a=12.3Å
Density 5.91g/cm3
Melting Point 1970℃±10℃
Growth Method Czochralski
Crystal Structure Cubic, Space group Ia3d
Density 5.91 g/cm3

Crystro offers

Property Value
Orientation ±15′
Wavefront Distortion <λ/8
Extinction Ratio >30dB
Diameter Tolerance +0.00mm/-0.05mm
Length Tolerance +0.2mm/-0.2mm
Chamfer 0.1mm @ 45°
Flatness <λ/10 at 633nm
Parallelism <3′
Perpendicularity <5′
Surface Quality 10/5
AR coating <0.2% @ 1064nm
