Created with Pixso. GGG Gd3Ga5O12 Crystalline Material Single Crystal Substrate
name
  • name
  • name

GGG Gd3Ga5O12 Crystalline Material Single Crystal Substrate

Brand Name: Crystro
Model Number: CR20230505-02
MOQ: 1
Price: 10-100
Delivery Time: 1-2 weeks
Payment Terms: T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
SGS
Item Name:
GGG
Formula:
Gd3Ga5O12
Lattic Parameter:
A=12.376Å
Growth Method:
Czochralski
Density:
7.13g/cm3
Mohs Hardness:
8.0
Melting Point:
1725℃
Refractive Index:
1.954 At 1064nm
Packaging Details:
vacuum package
Supply Ability:
100 pcs per week
Highlight:

GGG Laser Crystals

,

Gadolinium Gallium Garnet Single Crystal Substrate

,

Gd3Ga5O12 Crystalline Material

Product Description

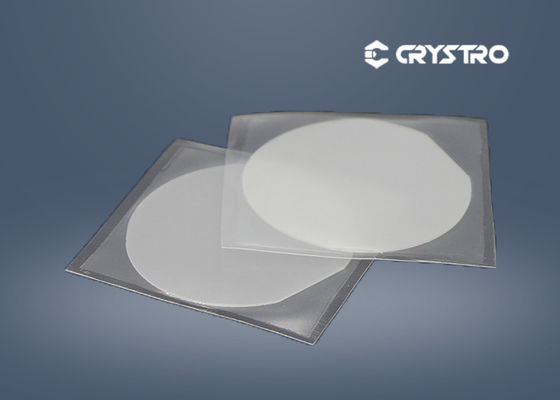

Crystro GGG Gd3Ga5O12 Crystalline Material Single Crystal Substrate

Gadolinium Gallium Garnet (GGG, Gd3Ga5O12) is a synthetic crystalline material of the garnet group, with good mechanical, thermal, and optical properties. It is typically colorless. It has a cubic lattice, a density of 7.08 g/cm3 and its Mohs hardness is variously noted as 6.5 and 7.5. Its crystals are produced with the Czochralski method.





Main Advantages:



Low optical losses (<0.1%/cm)

High thermal conductivity (7.4W m-1K-1).

High laser damage threshold (>1GW/cm2)





Main Properties:



Chemical Formula Gd3Ga5O12
Lattic Parameter a=12.376Å
Growth Method Czochralski
Density 7.13g/cm3
Mohs Hardness 8.0
Melting Point 1725℃
Refractive Index 1.954 at 1064nm























CRYSTRO can offer:

Orientation [111] within ±15 arc min
Wave Front Distortion <1/4 wave@632
Diameter Tolerance ±0.05mm
Length Tolerance ±0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 15 arc min
Surface Quality 10/5 Scratch/Dig
Clear Apereture >90%
Large Dimensions of Crystals 2.8-76 mm in diameter

GGG Gd3Ga5O12 Crystalline Material Single Crystal Substrate 0
