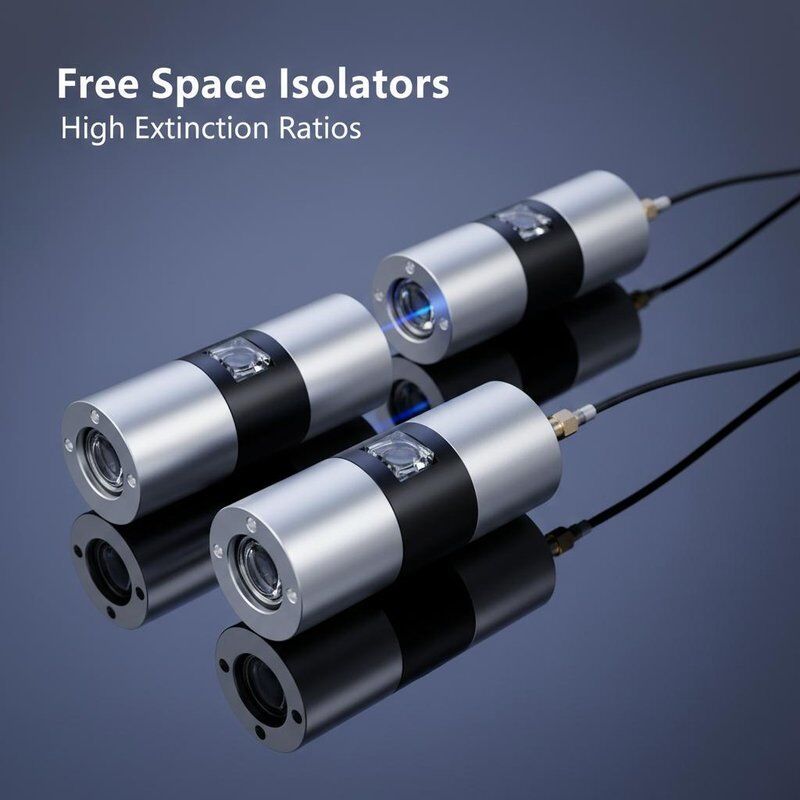

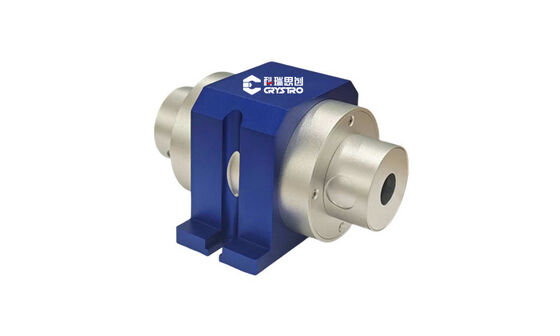

Free Space Isolators-high extinction ratios

Name: Free Space Isolators-high extinction ratios
Brand: ANHUI CRYSTRO CRYSTAL MATERIALS Co., Ltd.
SKU: CR-2026-15-01
Price: 1,500.00 USD
Availability: InStock

Brand Name:	crystro
Model Number:	CR-2026-15-01

Detail Information

Product Description

Detail Information

Place of Origin:

china

Name:

Free Space Isolator

Operatingtemperature:

-10°C To 50°C

Mountingtype:

Free-space

Mounting:

SM1 (1.035-40) Thread

Isolation:

>35dB

Optical Power:

10,30,50,100W

Tunable Wavelength Range:

+/-15nm

Returnloss:

≥ 50 DB

Isolationtype:

Non-reciprocal

Transmission:

>92%,>90%

Wavelengthrange:

1064 Nm ± 10 Nm

Insertionloss:

≤ 1.0 DB

Isolationratio:

≥ 30 DB

Polarizationdirection:

Linear

Peak Isolation:

>35dB

Highlight:

Faraday isolator high extinction ratio

Free space isolator optical component

Faraday isolator with warranty

Product Description

Free Space Isolators-high extinction ratios

1. Excellent Unidirectional Isolation Performance
Non-reciprocal Faraday rotation design delivers industry-leading high isolation, completely blocks back-reflected light, stray light and optical feedback, eliminates mode hopping, power jitter and frequency drift of the laser oscillator.
2. Ultra-Low Optical Transmission Loss
Optimized anti-reflection coating and crystal processing technology guarantee minimal signal attenuation for forward light, maximum laser energy utilization efficiency.
3. Outstanding High-Power Endurance
Adopted high-quality low-thermal TGG magneto-optic material, effectively suppress thermal lens effect under high-power laser input, excellent thermal stability, suitable for high-power industrial laser scenarios.
4. High Mechanical Stability & Easy Integration
Monolithic precision CNC metal structure, dust-proof, shock-resistant and vibration-proof design, standardized mounting interface, easy to install, align and integrate into existing optical platforms.
5. Compact & Space-Saving Structure
Miniaturized streamlined appearance, saves optical path layout space, reserved double escape window design for flexible optical arrangement.
6. Wide Environmental Adaptability
Wide operating temperature range, long service life, zero maintenance, reliable long-term continuous operation.
