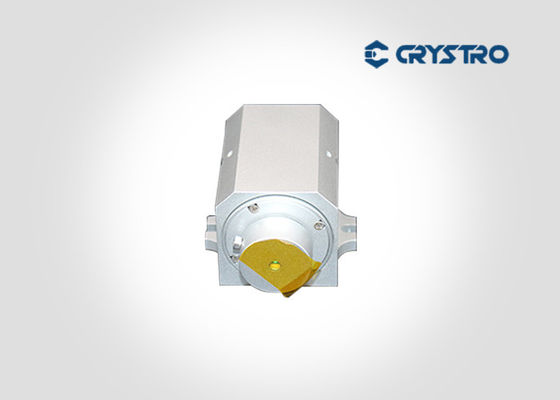

Lightweight Fiber Optica Faradayl Isolator Magneto Optic Materials SGS Certification

Lightweight Fiber Optica Faradayl Isolator Magneto Optic Materials SGS Certification
Lightweight Fiber Optica Faradayl Isolator Magneto Optic Materials SGS Certification Lightweight Fiber Optica Faradayl Isolator Magneto Optic Materials SGS Certification

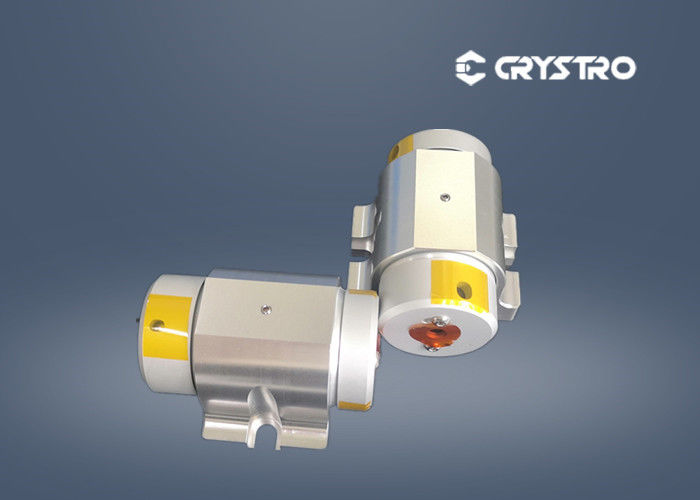

Large Image :  Lightweight Fiber Optica Faradayl Isolator Magneto Optic Materials SGS Certification

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CR20200108-1
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Carton Package
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Detailed Product Description
Type: Polarization Dependent Isolation: >35dB,>38dB,>40dB
Transmission: >92%,>90% Aperture: 2mm,3mm,4mm,5mm,6mm,10mm...
Wavelength: 355nm/1030,1064nm/1319,2000nm Temperature: -20-70℃
Material: TGG/TSAG Nme: Free Space Isolator
High Light:

high power isolator

,

fiber optic isolator

,

Lightweight Fiber Optic Faraday Isolator

High Power Fiber Optical Isolator High Isolation Magneto Optic Crystal



Our TGG/TSAG Isolators could maintain the light's linear polarization, through rotating the plane of polarized light 45°in the forward direction and an additional 45°of non-reciprocal rotation in the reverse direction. Our free space isolator series include 2 types :Polarization and Polarization Indepent. Meanwhile, free space isolators include fixed wavelength isolators and wavelength adjustable isolators.



Features:



Free space input and output

Orthogonal isolated beams



High damage threshold and power handling

Peak Isolation : Range from 30dB to 45dB



Isolators are available for optional λ/2 plate

All isolators contain escape ports





Applications:



Maintain the light's linear polarizaton

Avoide deleterious effects of back reflectons in laser diodes

Eliminate instability in amplified laser systems caused by ASE

Reduce Nd and Yb oscillations from ASE created by amplifiers



Specifications:



  UV VIS NIR IR
Center Wavelength 355nm 405-980nm 1030,1064nm 1319,2000,4500nm
Operating Wavelength Range ≥±10nm ≥±10nm ≥±15nm ≥±10nm
Peak Transmission >93% >90% >92% >90%
Peak Isolation >35dB >35dB >30dB >35dB
M2 Degradation <10% <10% <10% <10%
Clear Aperture 3,4mm or others 3,4mm or others 2,3,4,5,8,10,12 or others 3,4mm or others
Optical Power(Average) 1,5,10W or Specify 10,30,50W or Specify 10,30,50,100W or Specify 10,30,50W or Specify
Damage Threshold 3.5J/cm2@ 10ns 3.5J/cm2@ 10ns 10J/cm2@ 10ns 5J/cm2@ 10ns
Storage Temperature Range -20-70℃
Tunable Temperature Range 10-30℃
