1064nm High Quality Nd YAG Laser Rods Nd Yag Rods

Name: 1064nm High Quality Nd YAG Laser Rods Nd Yag Rods
Brand: ANHUI CRYSTRO CRYSTAL MATERIALS Co., Ltd.
SKU: CR200819-01
Price: 1,025.00 USD
Availability: InStock

Brand Name:	Crystro
Model Number:	CR200819-01
MOQ:	1pc
Price:	USD 50-2000/pc
Delivery Time:	3-4 weeks
Payment Terms:	T/T, Western Union, MoneyGram, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS/REACH

Dimension:

D3-D40mm

Nd Dopant Level:

0.3-1.5%

Wave Front Distortion:

L/8@632

Diameter Tolerance:

+/-0.05mm

Length Tolerance:

+/-0.05mm

Chamfer:

<0.1mm@45°

Surface Quality:

10/5

Clear Apeture:

>90%

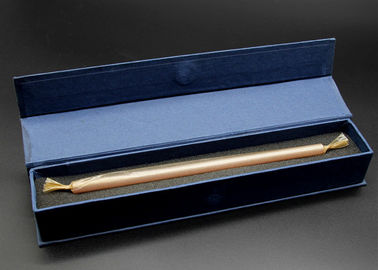

Packaging Details:

Gift box or clean box

Supply Ability:

3000pcs per month

Highlight:

neodymium doped yttrium aluminum garnet

yag laser rod

1064nm Nd YAG Laser Rods

Product Description

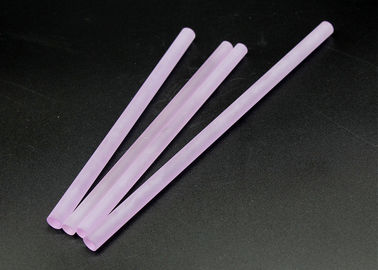

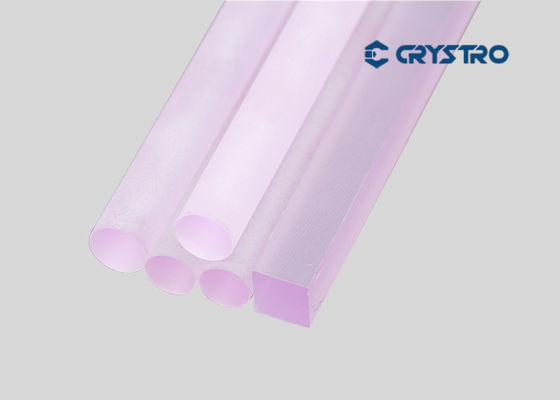

Standard Production of Nd:YAG Laser Rods with Different Sizes Available

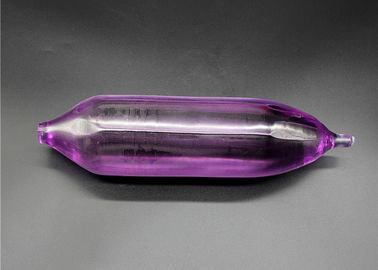

CRYSTRO grows neodymium doped yttrium aluminium garnet (Nd:YAG) crystals using the Czochralski growth method. A special protective atmosphere applied during crystal growth and post growth annealing result in a very good lasing efficiency of our crystals. Our production line covers crystal growth, machining and coating technologies.

Standard production of Nd:YAG laser rods includes:

Nd dopant concentrations from 0.05 % up to 1.3 at. % of Nd/Y
Rod diameters from 2 mm up to 12 mm
Rod lengths of up to 160 mm

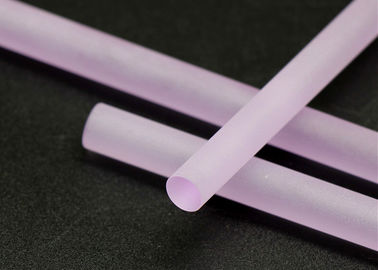

Barrel surface fine ground, polished or grooved
Perpendicular or wedged ends
Polishing according to DIN and MIL standards
A wide variety of anti-reflection, partial or high reflection coatings
AR coatings with R < 0.2 % and damage threshold higher than 15 J/cm2 for 10 ns pulses

Main Advantages:

High gain
Low threshold
High efficiency
Low loss at 1.06 μm
Good thermal conductivity and thermal shock characteristics
Mechanical strength
High optical quality

Main Properties:

Chemical Formula	Nd:Y₃Al₅O₁₂
Lattic Parameter	a=12.01Å
Growth Method	Czochralski
Density	4.5g/cm³
Mohs Hardness	8.5
Melting Point	1970℃
Refractive Index	1.82

CRYSTRO supply Nd:YAG crystal with:

Dimention	Diameter from 3 to 40mm
Nd Dopant level	From 0.3-1.5 atm%
Wave Front Distortion	1/8 wave@632
Diameter Tolerance	±0.05mm
Length Tolerance	±0.5mm
Chamfer	0.10mm@45º
Flatness	<1/10 wave at 633nm
Parallelism	< 10 arc Seconds
Perpendicularity	< 15 arc min
Surface Quality	10/5 Scratch/Dig
Clear Apereture	>90%
Damage Threshold	>500MW/cm²
