Cubic Symmetry Laser Crystals Nd YAG Laser Rod High Thermal Conductivity

Cubic Symmetry Laser Crystals Nd YAG Laser Rod High Thermal Conductivity

Brand Name:	Crystro
MOQ:	1pc
Price:	USD 100-2000/pc
Delivery Time:	4-5 weeks
Payment Terms:	T/T, Western Union, MoneyGram, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packaging Details:

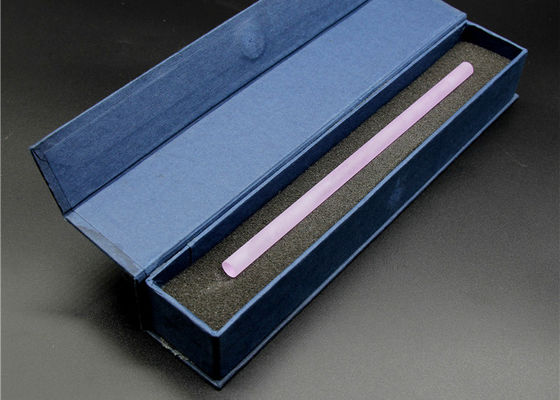

Gift box or clean box

Supply Ability:

500pcs per month

Highlight:

nd yag

yag laser rod

Cubic Symmetry Laser Crystals

Product Description

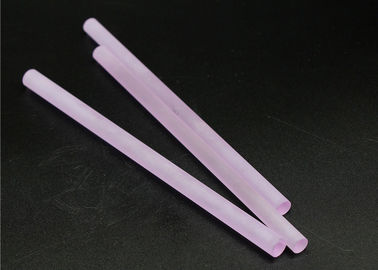

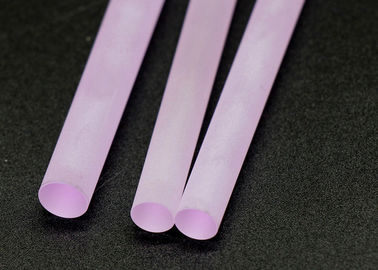

Nd:YAG Laser Rod

Applications:

Nd:YAG can produce blue laser with the frequency-doubling of 946nm
Nd:YAG can be operated in a very high power laser up to kw level
Nd:YAG can be Q-switched with Cr4+YAG directly
Due to the cubic symmetry and high quality, Nd:YAG is easy to operate with TEM00 mode

Features:

Its laser parameters are a good compromise between the strengths and weaknesses of its competition.
Compared with others laser crystals, its fluorescence lifetime is twice more than Nd:YVO4,and thermal conductivity is also better.

Main Properties:

Chemical Formula	Nd:Y₃Al₅O₁₂
Lattic Parameter	a=12.01Å
Growth Method	Czochralski
Density	4.5g/cm³
Mohs Hardness	8.5
Melting Point	1970℃
Refractive Index	1.82

CRYSTRO supply Nd:YAG crystal with:

Dimention	Diameter from 3 to 40mm
Nd Dopant level	From 0.3-1.5 atm%
Wave Front Distortion	1/8 wave@632
Diameter Tolerance	±0.05mm
Length Tolerance	±0.5mm
Chamfer	0.10mm@45º
Flatness	<1/10 wave at 633nm
Parallelism	< 10 arc Seconds
Perpendicularity	< 15 arc min
Surface Quality	10/5 Scratch/Dig
Clear Apereture	>90%
Damage Threshold	>500MW/cm²
