TSAG Crystal
Created with Pixso. Faraday Rotators Magneto Optical TSAG Crystals

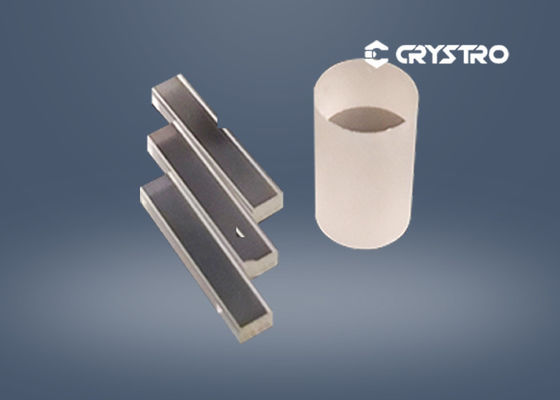

Faraday Rotators Magneto Optical TSAG Crystals

Brand Name: Crystro
Model Number: JCR200608-05
MOQ: 1pc
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/ROHS
Material:
TSAG Crystal
Diameter:
Customized
Extinction Ratio:
Up To 35dB
Transmittance Range:
400-1600nm
Surface Quality:
10-5
AR Coating:
<0.2%@1064nm
Wave Front Distortion:
<1/8 Wave
Packaging Details:
Transparent clean box
Supply Ability:
1000pcs per week
Highlight:

gadolinium gallium garnet

,

ggg substrate

,

Magneto Optical TSAG Crystals

Product Description

TSAG Crystal For High-Power Lasers Faraday Rotators



Description:



TSAG is perfect magneto optical crystal which can be used in visible and infrared wavelength regions. Good thermal and mechanical properties make TSAG very reliable material suitable for next generation fiber lasers. Compared to TGG, TSAG has about 20% higher Verdet constant and about 30% lower absorption at 1064 nm.





Features:

  • Large Verdet constant(48 radT-1m-1 at 1064 nm),about 20% higher than that of TGG;

  • Low absorption(<3000 ppm/cm at 1064 nm),about 30% less than that of TGG

  • High power compliant;

  • Making the isolator small.



Applications:

  • Faraday isolator based on TSAG crystal for high power lasers

  • Imaging applications:Scintillation properties of TSAG crystal for imaging applications

CRYSTRO supply TGG crystal with:



Transmittance Range(bulk/uncoated) 400-1600 nm
Crystal Structure Cubic,Space group Ia3d
Chemical Formula Tb3Sc2Al3O12
Lattice Parameter a=12.3 Å
Growth Method Czochralski
Density 5.91 g/cm3
Melting Point 1970℃±10℃
Orientation ±15′
Wavefront Distortion <λ/8
Extinction Ratio >30 dB
Diameter Tolerance +0.00 mm/-0.05 mm
Length Tolerance +0.2 mm/-0.2 mm
Chamfer 0.1 mm @ 45°
Flatness <λ/10 at 633 nm
Parallelism <3′
Perpendicularity <5′
Surface Quality 10/5
AR coating <0.3% @ 1064 nm
