TGG Crystal
Created with Pixso. 40dB 4" Faraday Polarizers Magneto Optical TGG Crystals
name
  • name
  • name

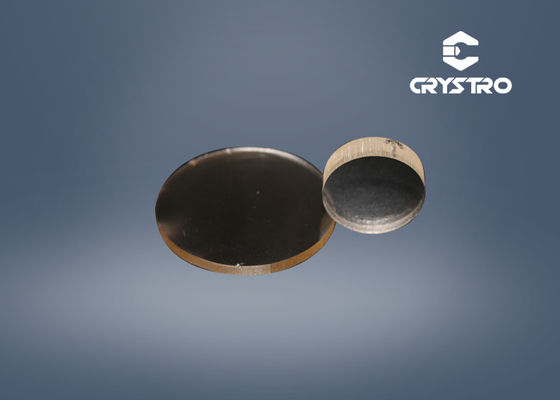

40dB 4" Faraday Polarizers Magneto Optical TGG Crystals

Brand Name: Crystro
Model Number: JCR201223-05
MOQ: 1pc
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
SGS/ROHS/REACH
Material:
TGG Faraday Crystal
Diameter:
4inch
Extinction Ratio:
40dB
Brand Name:
CRYSTRO
Chemical Formula:
=TB3Ga5O12
Advantage:
High Magneto Optic Constant
Lattic Value:
A=12.355Å
Density:
7.13
Packaging Details:
Transparent clean box
Supply Ability:
10000pcs per week
Highlight:

40dB Magneto Optical Crystals

,

TGG Faraday Crystal

,

40dB Faraday Crystal

Product Description

High Magneto Optic Constant Faraday Isolator TGG Crystal

Features:

  • Large Verdet Constant (Typical 35 dB,Up to 40dB)
  • Low optical losses (<0.1%/cm)
  • High laser damage threshold (>1GW/cm2).
  • TGG has twice the Verdet constant of a terbium-doped glass.
  • Thermal conductivity is an order of magnitude greater than typical glass.
  • Optical losses are lower for TGG than Tb-doped glasses

Description:



The terbium gallium garnite (TGG) crystal has high magnetooptic constant, low optical loss, high thermal conductivity and high laser damage threshold.TGG single crystal is the best magneto-optical material for making Faraday polarizers and isolators with applicable wavelength of 400~1100nm(not including 470~500nm).

The TGG crystal possesses a large Verdet constant (35 RadT−1m−1 at 1064 nm), high thermal conductivity (7.4 Wm−1K−1), low optical losses (< 0.1%/cm) and high laser damage threshold (> 1 GW/cm2).





CRYSTRO supply TGG crystal with:



Orientation [111] within ±15 arc min
Wave Front Distortion <1/8 wave
Extinction Ratio >35dB
Diameter Tolerance +0.00mm/-0.05mm
Length Tolerance +0.2mm/-0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 5 arc min
Surface Quality 10/5 Scratch/Dig
AR Coating <0.2%
Large Dimensions of Crystals 2.0--76 mm in diameter





Main Properties:

Chemical Formula TB3Ga5O12
Lattic Parameter a=12.355Å
Growth Method Czochralski
Density 7.13g/cm3
Mohs Hardness 8.0
Melting Point 1725℃
Refractive Index 1.954 at 1064nm
