TSAG Crystal
Created with Pixso. 1600nm 35dB Faraday TSAG Crystals Tb3Sc2Al3O12 Formula

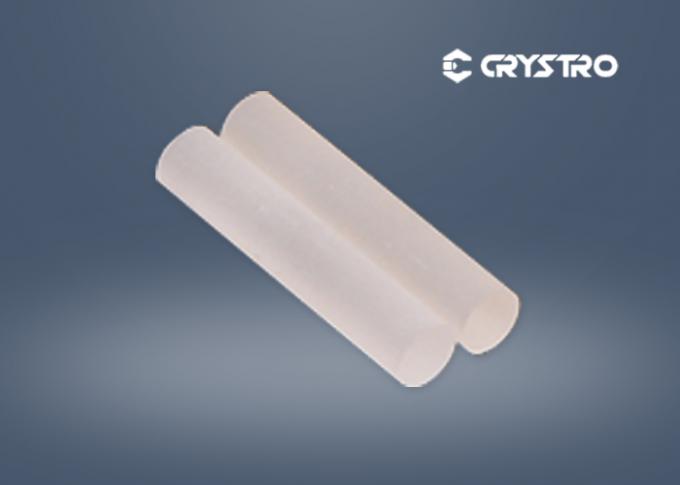

1600nm 35dB Faraday TSAG Crystals Tb3Sc2Al3O12 Formula

Brand Name: Crystro
Model Number: JCR200608-01
MOQ: 1pc
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/ROHS
Type:
High Power TGG TSAG Faraday Crystals
Size:
Dia 2mmx20mm
Diameter Tolerance:
+0/-0.05mm
Length Tolerance:
+/-0.2mm
Extinction Ratio:
Up To 35dB
Surface Quality:
10-5
AR Coating:
R<0.2%@1064nm
Delivery:
4 Weeks
Packaging Details:
Transparent clean box
Supply Ability:
1000pcs per week
Highlight:

Faraday TSAG Crystals

,

35dB TSAG Crystals

,

1600nm TSAG Crystals

Product Description

High Power TGG TSAG Faraday Crystals



TSAG is perfect magneto optical crystal which can be used in visible and infrared wavelength regions. Good thermal and mechanical properties make TSAG very reliable material suitable for next generation fiber lasers. Compared to TGG, TSAG has about 20% higher Verdet constant and about 30% lower absorption at 1064 nm.

It's application: Faraday isolator based on TSAG crystal for high power lasers, Imaging applications:Scintillation properties of TSAG crystal for imaging applications.



Features:

  • Large Verdet constant(48 radT-1m-1 at 1064 nm),about 20% higher than that of TGG;

  • Low absorption(<3000 ppm/cm at 1064 nm),about 30% less than that of TGG

  • High power compliant;

  • Low thermally-induced birefringence;

  • Making the isolator small.



Main Properties:



Transmittance Range(bulk/uncoated) 400-1600nm
Crystal Structure Cubic,Space group Ia3d
Chemical Formula Tb3Sc2Al3O12
Lattice Parameter a=12.3Å

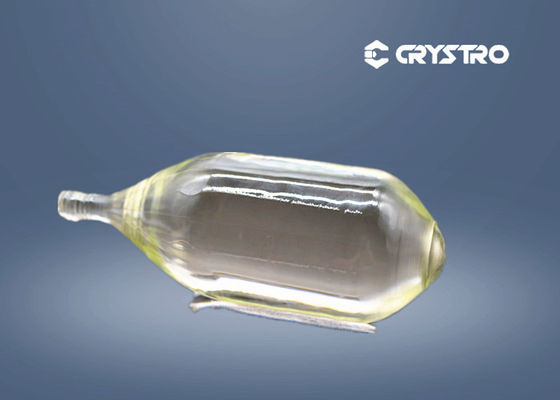

Growth Method Czochralski
Density 5.91g/cm3
Melting Point 1970℃±10℃





CRYSTRO supply TGG crystal with:





Orientation ±15′
Wavefront Distortion <λ/8
Extinction Ratio >30dB
Diameter Tolerance +/-0.05mm
Length Tolerance +/-0.1mm
Chamfer 0.1mm @ 45°
Flatness <λ/10 at 633nm
Parallelism <3′
Perpendicularity <5′
Surface Quality 10/5
AR coating <0.3% @ 1064nm
