Q Switch Crystals
Created with Pixso. Dia 5mm Co Spinel MgAl2O4 Q Switching Crystals For 1540nm Eyesafe Lasers

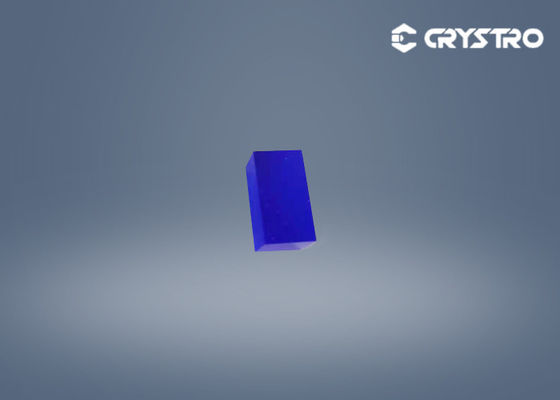

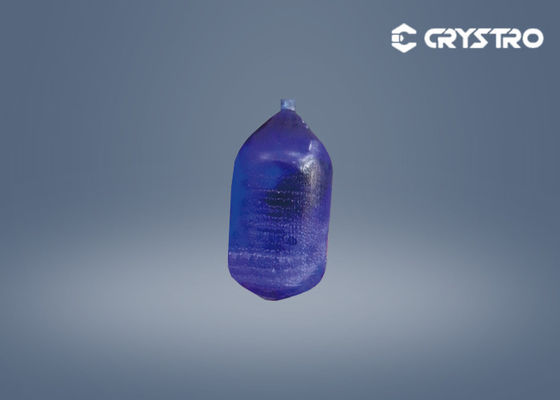

Dia 5mm Co Spinel MgAl2O4 Q Switching Crystals For 1540nm Eyesafe Lasers

Brand Name: Crystro
Model Number: CR210330-02
MOQ: 1pc
Price: Negotiable
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/ROHS
Name:
Passive Q-switching Co Spinel Co2+ MgAl2O4 Crystal
Diameter:
Dia5mm
Thickness:
1mm,0.5mm..
Material:
Co2+:MgAl2O4
Coating:
AR@1550nm
Damage Threshold::
>500 MW/cm2
Transmission::
30% To 99%
Refractive Index::
N= 1.6948 @1.54um
Packaging Details:
Carton Package
Supply Ability:
1000pcs/month
Highlight:

MgAl2O4 Q switching crystals

,

Co Spinel Q switching crystals

,

5mm MgAl2O4 crystals

Product Description

Passive Q-switching Co Spinel Co2+ MgAl2O4 Crystal



Introduction:



Crystro's Passive Q-switches or saturable absorbers generate high power laser pulses without the use of electro-optic Q-switches, thereby reducing the package size and eliminating a high voltage power supply. Co2+:MgAl2O4is a relatively new material for passive Q-switching in lasers emitting from 1.2 to 1.6μm, in particular, for eye-safe 1.54μm Er:glass laser, but also works at 1.44μm and 1.34μm laser wavelengths.



Spinel is a hard, stable crystal that polishes well. Cobalt substitutes readily for magnesium in the Spinel host without the need for additional charge compensation ions. High absorption cross section (3.5×10-19 cm2) permits Q-switching of Er:glass laser without intracavity focusing both with flash-lamp and diode laser pumping. Negligible excited-state absorption results in high contrast ratio of Q-switch, i.e. the ratio of initial (small signal) to saturated absorption is higher than 10.



Features:



Suitable for 1540 nm eye-safe lasers

High absorption section

Negligible excited state absorption

High optical quality

Uniformly distributed Co



Chemical formula

Co2+:MgAl2O4

Crystal structure

Cubic

Lattice parameters

8.07Å

Density

3.62 g/cm3

Melting Point

2105°C

Refractive Index

n= 1.6948 @1.54 µm

Thermal Conductivity

/(W.cm-1.K-1@25°C)

0.033 W

Specific Heat/ (J·g-1·K-1)

1.046

Thermal Expansion

/(10-6 /°C@25°C)

5.9

Hardness (Mohs)

8.2

Extinction Ratio

25 dB

Orientation

[100] or [111] < ±0.5°

Optical density

0.1-0.9

Damage Threshold

>500 MW/cm2

Doping concentration of Co2+

0.01-0.3 atm%
