| Name：: | Nd YAG Single Laser Crystal Rod For Medical Laser Systems | Growth Method: | Czochralski |
|---|---|---|---|
| Dimension: | Dia 2-60mm | Size Tolerance: | ±0.05mm |
| Polish: | S/D 10/5 | Clear Aperture: | 90% |
| Chamfer: | <0.10mm/cm2 | Damage Threshold: | >500MW/cm2 |
| Highlight: | Nd YAG Medical Laser,Nd YAG single laser crystal,2mm nd yag laser rod |
||

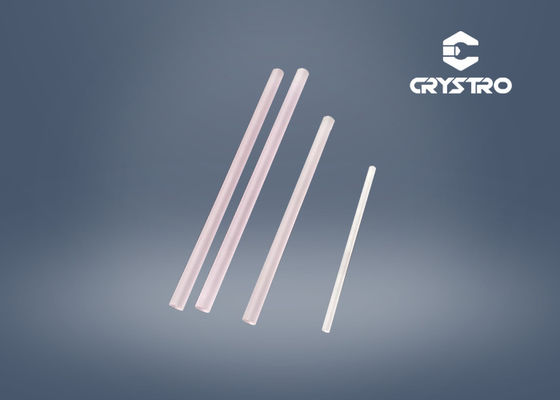

1.1%Nd YAG Single Laser Crystal Rod For Medical Laser Systems
Nd:YAG is a kind of laser crystal used in solid-state lasers.
Crystro can offer customized dopant and size as required,like 1.1% Nd doped,size D8*150,D6*180...
The dopant, triply ionized neodymium, Nd(III), typically replaces a small fraction of the yttrium ions in the host crystal structure of the yttrium aluminium garnet (YAG), since the two ions are of similar size. It is the neodymium ion which proves the lasing activity in the crystal, in the same fashion as red chromium ion in ruby lasers. Generally the crystalline YAG host is doped with around 1% neodymium by atomic percent.
Features:
Applications:
Main Properties:
| Chemical Formula | Nd:Y3Al5O12 |
| Lattic Parameter | a=12.01Å |
| Growth Method | Czochralski |
| Density | 4.5g/cm3 |
| Mohs Hardness | 8.5 |
| Melting Point | 1970℃ |
| Refractive Index | 1.82 |
CRYSTRO supply Nd:YAG crystal with:
| Dimention | Diameter from 3 to 40mm |
| Nd Dopant level | From 0.3-1.5 atm% |
| Wave Front Distortion | 1/8 wave@632 |
| Diameter Tolerance | ±0.05mm |
| Length Tolerance | ±0.5mm |
| Chamfer | 0.10mm@45º |
| Flatness | <1/10 wave at 633nm |
| Parallelism | < 10 arc Seconds |
| Perpendicularity | < 15 arc min |
| Surface Quality | 10/5 Scratch/Dig |
| Clear Apereture | >90% |
| Damage Threshold | >500MW/cm2 |
