| Product: | 2100nm Wavelength Holmium Doped Yttrium Aluminum Garnet Ho YAG Laser Crystal Rod | Size: | Customized |
|---|---|---|---|
| Size Tolerance: | ±0.05mm | Growth Method: | Czochralski |
| Dimension: | Customized | Polish: | S/D 10/5 |
| Chamfer: | <0.10mm/cm2 | Damage Threshold: | >500MW/cm2 |
| High Light: | Ho YAG Laser Crystal Rod,2100nm yttrium aluminium garnet,Holmium Doped yttrium aluminum garnet |
||

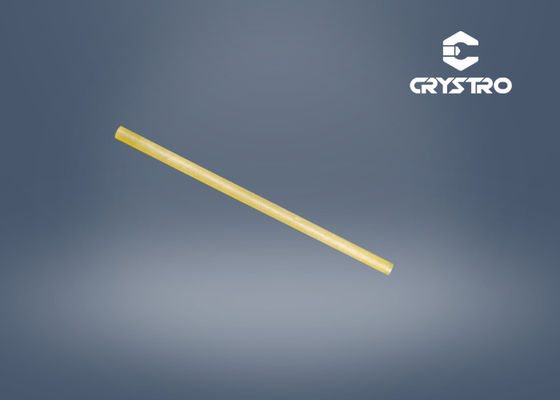

2100nm wavelength Holmium Doped Yttrium Aluminum Garnet Ho YAG Laser Crystal Rod
Ho: YAG ( Holmium-doped Yttrium aluminum garnet, Ho: Y3Al5O12) is commonly used as an efficient means to generate 2.1-μm laser emission from the 5I7 - 5I8 transition, for applications such as laser remote sensing, medical surgery, and pumping Mid-IR OPO's to achieve 3-5micron emission.Ho: YAG laser can be pumped directly by diode lasers or by Tm-doped fiber lasers, with high slope efficiencies.
Main Features :
High laser gain
Low quantum defect
Long fluorescence life
Large emission cross-section
High slope efficiency
High-energy storage capability
Main Applications :
Medical surgery
Material processing
Laser ranging
Optical communication
Remote sensing and radar
Main Properties:
|
Chemical Formula |
Ho:Y3Al5O12 |
|
Crystal Structure |
Cubic |
|
Lattice Constant |
12.013Å |
|
Melting Point |
1965°C |
|
Density |
4.56g/cm3 |
|
Mohs Hardness |
8.5 |
|
Refraction index @633nm |
1.82 |
|
Thermal Expansion Coefficient @ 1064nm |
7.8x10-6/K |
|
Specific Heat |
0.59 J/g/K |
|
Thermal Conductivity |
11.2 W m-1 K-1 |
