Faraday Isolator
Created with Pixso. 8mm Clear Aperture 980nm Free Space Faraday Rotation Isolator

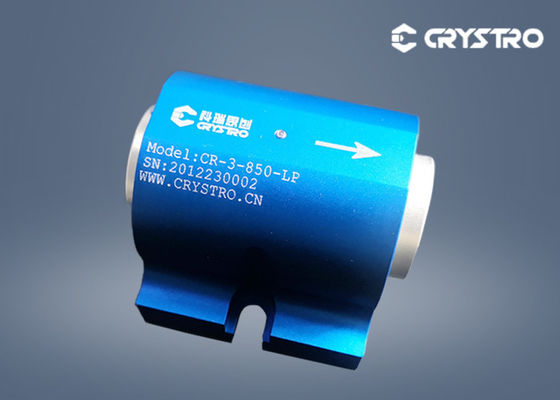

8mm Clear Aperture 980nm Free Space Faraday Rotation Isolator

Brand Name: Crystro
Model Number: CR210817-02
MOQ: 1pc
Price: Negotiable
Delivery Time: 1-4 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/COC
Item:
8mm Clear Aperture 1030nm Free Space Faraday Rotation Isolator
Clear Aperture:
8mm Or Customized
Center Wavelength:
1030nmor Customized
Isolation:
>35dB
Type:
Single/Double
Transmission:
>93%
Temperature:
-20-70℃
Optical Power::
10,30,50,100W
Packaging Details:
Carton Package
Supply Ability:
1000pcs/month
Highlight:

980nm Faraday Rotation Isolator

,

8mm Faraday Rotation Isolator

,

Faraday Free Space Isolator

Product Description

8mm Clear Aperture 1030nm Free Space Faraday Rotation Isolator



Crystro can offer isolator with features:



  • Superior Performance and Reliability
  • High Isolation / Low Insertion Loss
  • High Power Models with Exit Ports for
    Return Signal Monitoring or Beam Injection
  • Customized size and wavelength



Crystro can independently developed and produced rotators and isolators, which are made of our own produced TGG magneto-optical crystal,which is a key material of the device, so that can ensure the series products have the highest isolation, transmittance, laser damage threshold resistance and temperature application range.



Specifications:



  UV VIS NIR IR
Center Wavelength 355nm 405-980nm 1030,1064nm 1319,2000,4500nm
Operating Wavelength Range ≥±10nm ≥±10nm ≥±15nm ≥±10nm
Peak Transmission >93% >90% >92% >90%
Peak Isolation >35dB >35dB >30dB >35dB
M2 Degradation <10% <10% <10% <10%
Clear Aperture 3,4mm or others 3,4mm or others 2,3,4,5,8,10,12 or others 3,4mm or others
Optical Power(Average) 1,5,10W or Specify 10,30,50W or Specify 10,30,50,100W or Specify 10,30,50W or Specify
Damage Threshold 3.5J/cm2@ 10ns 3.5J/cm2@ 10ns 10J/cm2@ 10ns 5J/cm2@ 10ns
Storage Temperature Range -20-70℃
Tunable Temperature Range 10-30℃





8mm Clear Aperture 980nm Free Space Faraday Rotation Isolator 0
