Faraday Isolator
Created with Pixso. Dia5mm Apeture 1064nm Magneto Crystal Free Space Optical Isolator

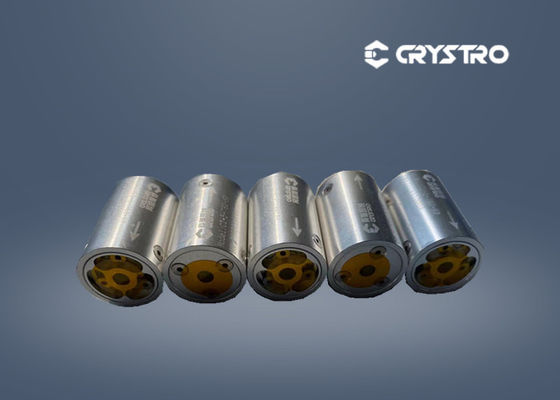

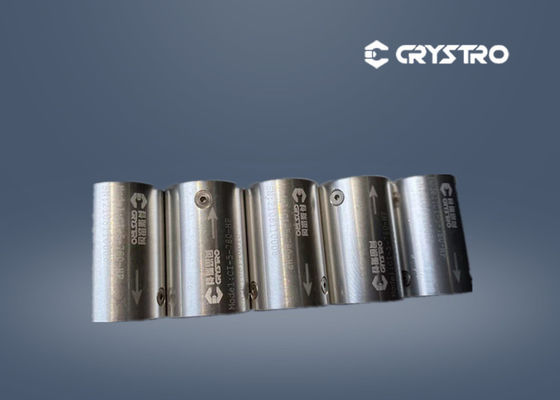

Dia5mm Apeture 1064nm Magneto Crystal Free Space Optical Isolator

Brand Name: Crystro
Model Number: CR210820-01
MOQ: 1pc
Price: Negotiable
Delivery Time: 1-4 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/COC
Item:
Dia5mm Apeture 1064nm Small Size Customized Free Space Isolator
Material:
Megneto Crystal
Center Wavelength:
Customized
Aperture:
3mm-15mm
Isolation:
>35dB
Transmission:
>93%
Tunable Temperature:
10-30℃
Temperature:
-20-70℃
Packaging Details:
Carton Package
Supply Ability:
1000pcs/month
Highlight:

Magneto Crystal free space isolator

,

1064nm free space isolator

,

COC Magneto isolator

Product Description

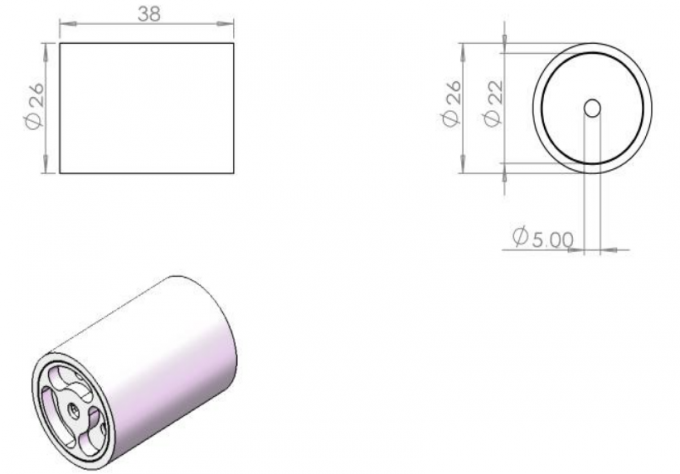

Dia5mm Apeture 1064nm Small Size Customized Free Space Isolator



An optical isolator is a passive magneto-optic device based on the Faraday effect. It is an optical component that allows the transmission of light in only one direction and prevents unwanted feedback into an optical oscillator. Crystro offers isolators that are based on our own TGG or TSAG Faraday crystals of low loss and high optical power threshold.



Crystro can independently developed and produced Rotators and Isolators, which are made of our own produced TGG magneto-optical crystal,which is a key material of the device, so that can ensure the series products have the highest isolation, transmittance, laser damage threshold resistance and temperature application range.





Features:



High isolation
Low insertion loss
Multiple clear apertures
Double escape windows at both ends
Multiple wavelengths available
Practicality of a certain wavelength bandwidth
Output polarization controllable



Specifications:



780nm Free Space Isolator.pdf



  UV VIS NIR IR
Center Wavelength 355nm 405-980nm 1030,1064nm 1319,2000,4500nm
Operating Wavelength Range ≥±10nm ≥±10nm ≥±15nm ≥±10nm
Peak Transmission >93% >90% >92% >90%
Peak Isolation >35dB >35dB >30dB >35dB
M2 Degradation <10% <10% <10% <10%
Clear Aperture 3,4mm or others 3,4mm or others 2,3,4,5,8,10,12 or others 3,4mm or others
Optical Power(Average) 1,5,10W or Specify 10,30,50W or Specify 10,30,50,100W or Specify 10,30,50W or Specify
Damage Threshold 3.5J/cm2@ 10ns 3.5J/cm2@ 10ns 10J/cm2@ 10ns 5J/cm2@ 10ns
Storage Temperature Range -20-70℃
Tunable Temperature Range 10-30℃
