Faraday Isolator
Created with Pixso. SGS OCT System Faraday Rotation Isolator 12mm Aperture

SGS OCT System Faraday Rotation Isolator 12mm Aperture

Brand Name: Crystro
Model Number: CR201023-01
MOQ: 1pc
Price: Negotiable
Delivery Time: ready in stock
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/COC
Material:
TGG
Isolation:
>33dB
Clear Aperture:
2mm/5mm/12mm
Wavelength:
400nm - 1030nm
Temperature:
-20-70℃
Transmission:
>93%
Tunable Temperature:
10-30℃
Optical Power:
Up To 100W
Packaging Details:
Carton Package
Supply Ability:
1000pcs/month
Highlight:

OCT System Faraday Rotation Isolator

,

Faraday Isolator 12mm Aperture

,

Faraday Isolator SGS

Product Description

SGS OCT System 12mm Aperture Faraday Rotation Isolator



400-1000nm Free Space Faraday Rotator



Faraday rotator provides non-reciprocal rotation while maintaining linear polarization, The plane of polarization will be rotated 45°when light transmits through the Faraday rotator in the forward direction and rotated additional 45° in the same relative direction with respect to magnetic field when light travels backwards from the reverse direction. It will generate total rotation of 90°and reject the light coming from the reverse direction.

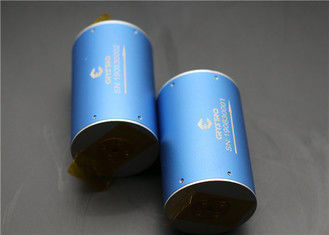

SGS OCT System Faraday Rotation Isolator 12mm Aperture 0

Features:



Free space input and output

Isolators are available for optional λ/2 plate

High damage threshold and power handling

Peak Isolation : Range from 30dB to 45dB





Applications:


● Laser sensing system

● Ultrafast laser system

● OCT system

● Laser detection etc



Specifications:



  UV VIS NIR IR
Center Wavelength 355nm 405-980nm 1030,1064nm 1319,2000,4500nm
Operating Wavelength Range ≥±10nm ≥±10nm ≥±15nm ≥±10nm
Peak Transmission >93% >90% >92% >90%
Peak Isolation >35dB >35dB >30dB >35dB
M2 Degradation <10% <10% <10% <10%
Clear Aperture 3,4mm or others 3,4mm or others 2,3,4,5,8,10,12 or others 3,4mm or others
Optical Power(Average) 1,5,10W or Specify 10,30,50W or Specify 10,30,50,100W or Specify 10,30,50W or Specify
Damage Threshold 3.5J/cm2@ 10ns 3.5J/cm2@ 10ns 10J/cm2@ 10ns 5J/cm2@ 10ns
Storage Temperature Range -20-70℃
Tunable Temperature Range 10-30℃
