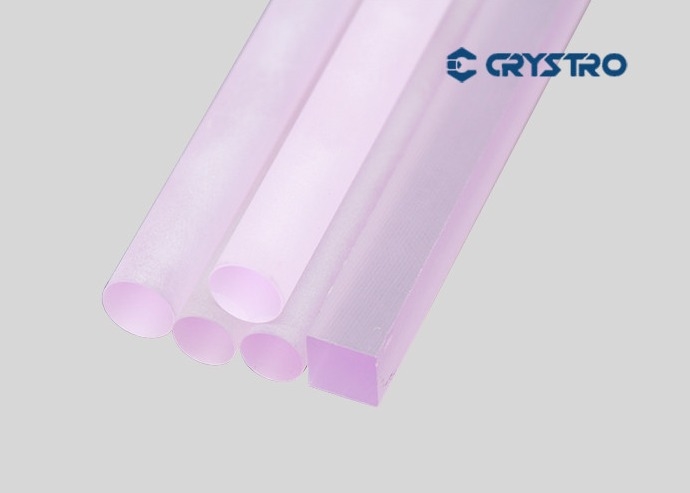

3x3mm Y3Al5O12 Nd YAG Laser Crystal For Laser Marking

Brand Name: Crystro
Model Number: NY-1
MOQ: 1pc
Price: USD 100-2000/pc
Delivery Time: 4-5 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/ROHS/REACH
Item Name:
Nd:Y3Al5O12
Size:
3x3mm
Lattice Structure:
A=12.01A
Grow Method:
Czochralski
Hardness:
8.5 Mohs
Refractive Index:
1.82
Density:
4.5g/cm3
Tolerance:
±0.1
Packaging Details:
Gift box or clean box
Supply Ability:
500pcs per month
Highlight:

Laser Marking Nd Yag Crystal

,

Y3Al5O12 Nd YAG Laser Crystal

,

3x3mm Laser Crystal

Product Description

Crystro 3x3mm Nd:Y3Al5O12 Nd:YAG laser crystal for laser marking



Nd: Y3Al5O12) or yttrium aluminum garnet crystal, yttrium aluminum garnet crystal is its active substance, the Nd atom content in the bulk crystal is 0.6-1.1%, it is a solid-state laser, which can excite pulsed laser or continuous laser, The emitted laser light has an infrared wavelength of 1.064 μm.



Main Advantages:

  • High gain
  • Low threshold
  • High efficiency
  • Low loss at 1.06 μm
  • Good thermal conductivity and thermal shock characteristics
  • Mechanical strength
  • High optical quality



Main Properties:

Chemical Formula  Nd:Y3Al5O12
Lattic Parameter  a=12.01Å
Growth Method  Czochralski
Density  4.5g/cm3
Mohs Hardness  8.5
Melting Point  1970℃
Refractive Index  1.82



CRYSTRO supply Nd:YAG crystal with:

Dimention  Diameter from 3 to 40mm
Nd Dopant level  From 0.3-1.5 atm%
Wave Front Distortion  1/8 wave@632
Diameter Tolerance  ±0.05mm
Length Tolerance  ±0.5mm
Chamfer  0.10mm@45º
Flatness  <1/10 wave at 633nm
Parallelism  < 10 arc Seconds
Perpendicularity  < 15 arc min
Surface Quality  10/5 Scratch/Dig
Clear Apereture  >90%
Damage Threshold  >500MW/cm2
