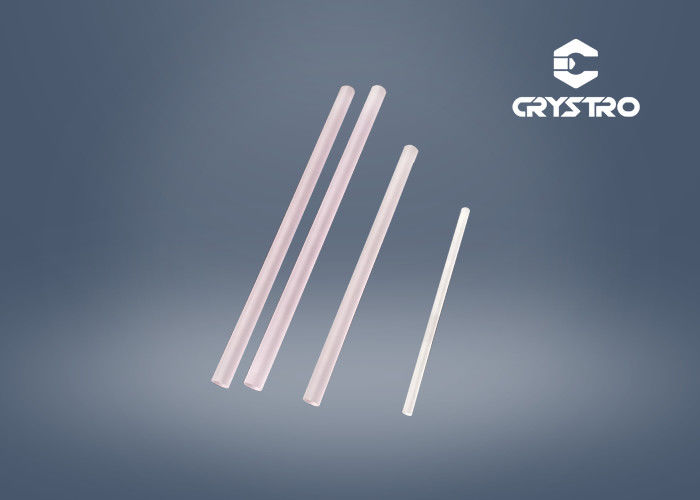

High Power Nd YAG Laser Crystal Neodymium Yttrium Aluminum Garnet

High Power Nd YAG Laser Crystal Neodymium Yttrium Aluminum Garnet
High Power Nd YAG Laser Crystal Neodymium Yttrium Aluminum Garnet

Large Image :  High Power Nd YAG Laser Crystal Neodymium Yttrium Aluminum Garnet

Product Details:
Place of Origin: CHINA
Brand Name: Crystro
Certification: SGS/COC/ROHS/REACH
Model Number: CR210630-02
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD 100-2000/pc
Packaging Details: Gift box or clean box
Delivery Time: 4-5 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 500pcs per month
Detailed Product Description
Name:: Nd YAG Single Laser Crystal Rod For Medical Laser Systems Growth Method: Czochralski
Dimension: Dia 2-60mm Size Tolerance: ±0.05mm
Polish: S/D 10/5 Clear Aperture: 90%
Chamfer: <0.10mm/cm2 Damage Threshold: >500MW/cm2
High Light:

Neodymium Yttrium Aluminum Garnet Crystal

,

2mm Nd YAG Laser Crystal

,

High Power Nd Yag Laser Crystal

Crystro Neodymium: Yttrium Aluminum Garnet Nd:YAG High Power Laser Crystal



SYNOPTICS manufactures Nd:YAG for use in industrial, medical, military and scientific applications. YAG is grown utilizing the Czochralski technique. The as-grown crystals are then processed into laser rods or slabs, coated in house and inspected per customer specifications. SYNOPTICS’ high volume capacity and complete capabilities for growth, fabrication, polishing, and coating makes us the clear choice as your Nd:YAG rod supplier.





Features:

  • Its laser parameters are a good compromise between the strengths and weaknesses of its competition.
  • Compared with others laser crystals, its fluorescence lifetime is twice more than Nd:YVO4,and thermal conductivity is also better.



Applications:



  • Nd:YAG can produce blue laser with the frequency-doubling of 946nm
  • Nd:YAG can be operated in a very high power laser up to kw level
  • Nd:YAG can be Q-switched with Cr4+YAG directly



Main Properties:

Chemical Formula  Nd:Y3Al5O12
Lattic Parameter  a=12.01Å
Growth Method  Czochralski
Density  4.5g/cm3
Mohs Hardness  8.5
Melting Point  1970℃
Refractive Index  1.82



CRYSTRO supply Nd:YAG crystal with:

Dimention  Diameter from 3 to 40mm
Nd Dopant level  From 0.3-1.5 atm%
Wave Front Distortion  1/8 wave@632
Diameter Tolerance  ±0.05mm
Length Tolerance  ±0.5mm
Chamfer  0.10mm@45º
Flatness  <1/10 wave at 633nm
Parallelism  < 10 arc Seconds
Perpendicularity  < 15 arc min
Surface Quality  10/5 Scratch/Dig
Clear Apereture  >90%
Damage Threshold  >500MW/cm2



                                High Power Nd YAG Laser Crystal Neodymium Yttrium Aluminum Garnet 0
