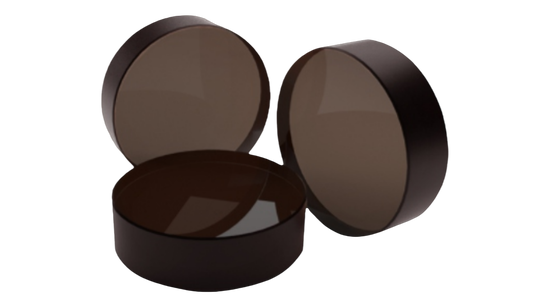

Cr⁴⁺:YAG Passive Q-Switch Saturable Absorber Crystal, High Laser Damage Threshold & Stable Repetitive Frequency Operation

Name: Cr⁴⁺:YAG Passive Q-Switch Saturable Absorber Crystal, High Laser Damage Threshold & Stable Repetitive Frequency Operation
Brand: ANHUI CRYSTRO CRYSTAL MATERIALS Co., Ltd.
SKU: CCR-2026-13-02
Price: 252.00 USD
Availability: InStock

Brand Name:	Crystro
Model Number:	CCR-2026-13-02
Delivery Time:	4-5weeks
Payment Terms:	T/T, Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Orientation:

<111>, <100>±5°

Initial Absorption Coefficient:

0.5～6cm -1 @1064nm

Initial Transmittance:

5%～95% @1064nm

Component Size:

Diameter: 3~20mm; Length*Width: 3×3~20×20mm

Dimensional Tolerance:

Diameter: 0/-0.05mm, Length: ±0.5mm

Cylindrical Processing:

Fine Grinding

Parallelism Of End Faces:

≤30"

Flatness Of End Face:

λ/8 @632.8nm

Surface Quality:

20-10 (MIL-O-13830A)

AR Coating Reflectance:

≤0.25% @1064nm

Coating Anti-laser Damage Threshold:

≥500MW/ Cm2

Highlight:

Cr⁴⁺:YAG Q-Switch crystal

Passive Q-Switch saturable absorber

High damage threshold laser crystal

Product Description

Cr⁴⁺:YAG Passive Q-Switch Saturable Absorber Crystal, High Laser Damage Threshold & Stable Repetitive Frequency Operation

Cr 4+ :YAG crystal is excellent passive Q-switched crystal widely used in 1μm neodymium and ytterbium lasers. It has the characteristics of high output efficiency of Q switch and suitable for repetitive frequency work. It has a high resistance to photodamage threshold, is more stable and durable than dyes and color center saturable absorbers, and can replace electro-optic Q switches to output high-power laser pulses in some cases.

Chromium doped yttrium aluminum garnet (Cr 4+ : YAG) Cr: Y 3 Al 5 O 12 crystal It is suitable for Q switch, diode pumping, Nd:YAG, Nd:YLF, Nd:YVO 4 pumping lamps and others Lasers with a wavelength of 0.8~1.2um doped with Nd or Yb.

Main features:

High chemical stability and reliability

long life

Good thermal conductivity

High damage threshold (>500MW/cm 2 )

Available as a high power, solid state and compact passive Q-switched switch

easy to operate

Material properties:

Crystal structure	Cubic system
Lattice constant	12.01 Å
Melting point	1970°C
Moh's hardness	8.5
Density	4.56g/ cm3
Specific heat	0.59J/g.cm 3 @0-20℃
Coefficient of thermal expansion	[111] Direction: 7.8×10 -6 /K@0~250℃
