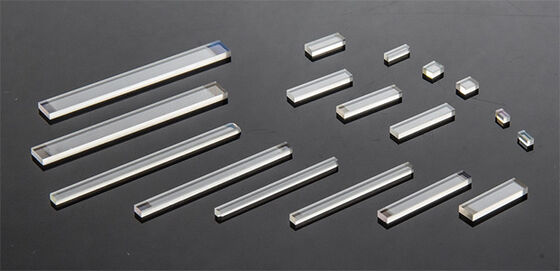

PPLN MgO-doped periodically poled lithium niobate features outstanding nonlinear coefficient and high anti-photorefraction performance.

$PPLN MgO-doped periodically poled lithium niobate features outstanding nonlinear coefficient and high anti-photorefraction performance.$

PPLN MgO-doped periodically poled lithium niobate features outstanding nonlinear coefficient and high anti-photorefraction performance.

Brand Name:	crystro
Model Number:	PCR202610-01
Delivery Time:	5 weeks
Payment Terms:	T/T, Western Union, D/P,Paypal,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

5 Mol.% MgO:LN

Main Function:

Second Harmonic Generation

Parallelism/Perpendicularity:

≤5’/21

Flatness:

≤/6 (=633nm)

Scratch/Dig:

≤20/10

Optical Coating (S1/S2 Facets):

S1/S2 @750-810(R<0.5%) /1500-1620(R<0.5%) Nm

Aperture Size:

12.3 X 1.0 Mm2 (W XT

Available Length:

10/25/50 ± 0.2 Mm

Channel Clear Aperture:

≥80% (T), ≥90% (W)

Highlight:

PPLN MgO-doped lithium niobate crystal

periodically poled lithium niobate with high nonlinear coefficient

MgO-doped lithium niobate anti-photorefraction crystal

Product Description

PPLN MgO-doped periodically poled lithium niobate features outstanding nonlinear coefficient and high anti-photorefraction performance.

Description

MgO:PPLN is premium QPM nonlinear crystal with boosted damage resistance. Wide 400nm–5.2μm transmission, high d33 for efficient SHG, DFG, OPO & SPDC. Ideal for mid-IR lasers, gas sensing and quantum photonics; customizable period & dimension.

MgO-doped periodically poled lithium niobate (MgO:PPLN) features outstanding nonlinear coefficient and high anti-photorefraction performance. With broad transmission from visible to mid-infrared, it enables efficient SHG, DFG, OPO and SPDC. Suitable for mid-IR laser, gas spectroscopy and quantum photonics; customizable poling period, crystal size and multi-channel structures for research and industrial laser projects.

Items	Properties	Inspection
Material	5mol.% MgO:LN	NA
Period (A,um)	18.45, 18.65,18.85,19.05,19.25, 19.45,19.65,19.85, 20.05, 20.25	Microscope
Main Function	Second Harmonic Generation	NA
Parallelism/Perpendicularity	≤5'/2I'	Autocollimator
Flatness	≤2/6 (1=633nm)	Interferometer
Scratch/Dig	≤20/10	Microscope
Optical coating(S1/S2 facets)	S1/S2 @750-81o(R<0.5%) /1500-1620(R<0.5%)nm	SpectralAnalyzer
Aperture Size	12.3x1.0 mm2(W xT)	Cutting Machine
Available Length	10/25/50+0.2mm	Cutting Machine
Channel Clear Aperture	>80% (T),≥90% (W)	NA
