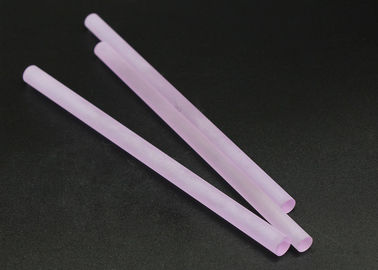

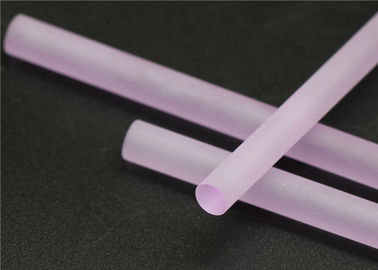

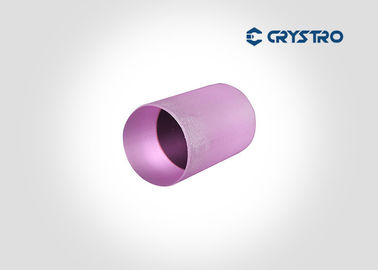

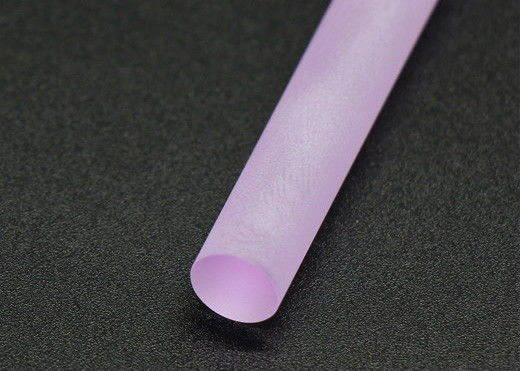

Neodymium Doped Yttrium Aluminum Garnet Nd YAG Crystal For Laser System

Brand Name: Crystro
MOQ: 1pc
Price: USD 100-2000/pc
Delivery Time: 4-5 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Packaging Details:
Gift box or clean box
Supply Ability:
500pcs per month
Highlight:

nd yag

,

yag laser rod

,

Crystro Nd YAG Crystal

Product Description

Neodymium Doped Yttrium Aluminum Garnet (Nd:YAG) Crystal for Laser System

CRYSTRO manufactures neodymium doped yttrium aluminium garnet (Nd:YAG) crystals for use in industrial, medical, military and scientific applications. CRYSTRO grows Nd:YAG using the Czochralski growth method. Our production line covers crystal growth, machining and coating technologies.



Main Advantages:

  • High gain
  • Low threshold
  • High efficiency
  • Low loss at 1.06 μm
  • Good thermal conductivity and thermal shock characteristics
  • Mechanical strength
  • High optical quality



Main Properties:

Chemical Formula  Nd:Y3Al5O12
Lattic Parameter  a=12.01Å
Growth Method  Czochralski
Density  4.5g/cm3
Mohs Hardness  8.5
Melting Point  1970℃
Refractive Index  1.82



CRYSTRO supply Nd:YAG crystal with:

Dimention  Diameter from 3 to 40mm
Nd Dopant level  From 0.3-1.5 atm%
Wave Front Distortion  1/8 wave@632
Diameter Tolerance  ±0.05mm
Length Tolerance  ±0.5mm
Chamfer  0.10mm@45º
Flatness  <1/10 wave at 633nm
Parallelism  < 10 arc Seconds
Perpendicularity  < 15 arc min
Surface Quality  10/5 Scratch/Dig
Clear Apereture  >90%
Damage Threshold  >500MW/cm2
