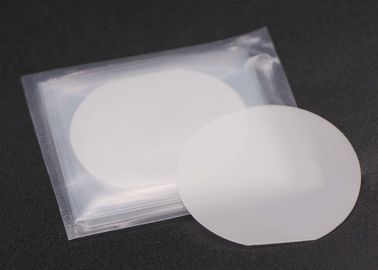

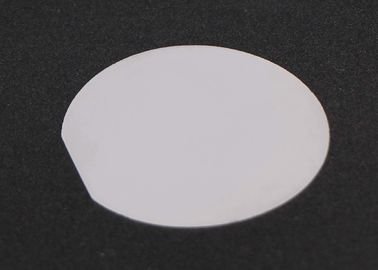

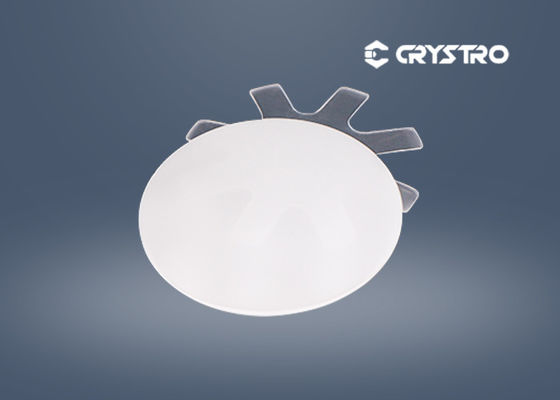

Gadolinium Gallium Garnet GGG Single Crystal Substrate For YIG And BIG Film

Name: Gadolinium Gallium Garnet GGG Single Crystal Substrate For YIG And BIG Film
Brand: ANHUI CRYSTRO CRYSTAL MATERIALS Co., Ltd.
SKU: CR-200820-06
Price: 260.00 USD
Availability: InStock

Brand Name:	CRYSTRO
Model Number:	CR-200820-06
MOQ:	1pc
Price:	USD 20-500/pc
Delivery Time:	4-5weeks
Payment Terms:	T/T, Western Union, MoneyGram, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

SGS/ROHS

Size:

Max 4inch Diameter

Thickness:

0.5mm/1.0mm

Polishing:

EPI Ready

Orientation:

<111>or<100>

Roughness:

<0.5nm

Edge Orientation Accuracy:

<1°

Packaging Details:

Transparent clean box

Supply Ability:

5000pcs per month

Highlight:

lanthanum aluminate

laalo3 substrate

GGG Single Crystal Substrate

Product Description

Gadolinium Gallium Garnet (GGG) Single Crystal Substrate for YIG and BIG Film

Gadolinium Gallium Garnet (GGG, Gd₃Ga₅O₁₂) is a magneto-optical and microwave substrate. It is the best substrate material for infrared optical isolator (1.3 and 1.5um), which is a very important device in optical communication. It is made of YIG or BIG film on the GGG substrate plus birefringence parts. Also GGG is an important substrate for microwave isolator and other devices. Its physical, mechanical and chemical properties are all good for the above applications.

Main Advantages:

Large dimensions,from 2.8 to 76mm.
Low optical losses (<0.1%/cm)
High thermal conductivity (7.4W m-1K-1).
High laser damage threshold (>1GW/cm2)

Main Properties:

Chemical Formula	Gd₃Ga₅O₁₂
Lattic Parameter	a=12.376Å

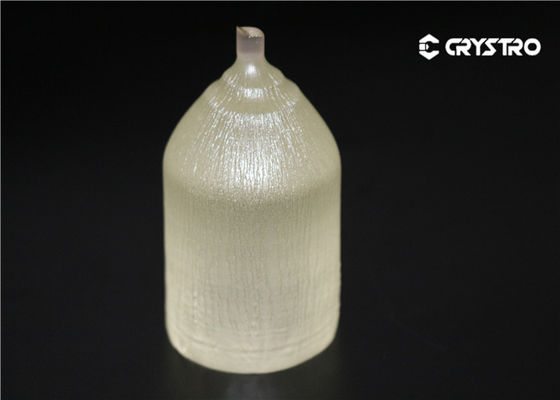

Growth Method	Czochralski
Density	7.13g/cm³
Mohs Hardness	8.0
Melting Point	1725℃
Refractive Index	1.954 at 1064nm

CRYSTRO supply GGG crystal with:

Orientation	[111] within ±15 arc min
Wave Front Distortion	<1/4 wave@632
Diameter Tolerance	±0.05mm
Length Tolerance	±0.2mm
Chamfer	0.10mm@45º
Flatness	<1/10 wave at 633nm
Parallelism	< 30 arc Seconds
Perpendicularity	< 15 arc min
Surface Quality	10/5 Scratch/Dig
Clear Apereture	>90%
Large Dimensions of Crystals	2.8-76 mm in diameter
