Magneto Optical Crystals
Created with Pixso. Boule Magneto Optical Crystals TGG Crystal With Diameter 3 Inches 76mm

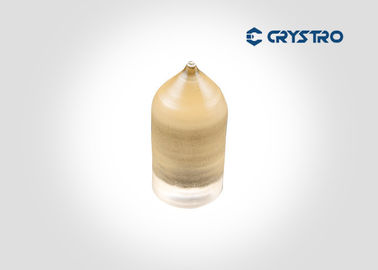

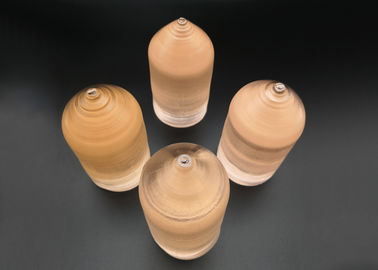

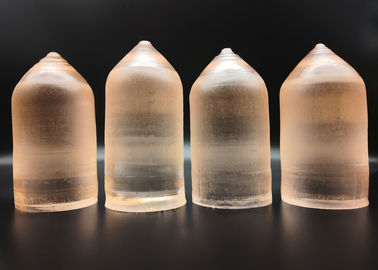

Boule Magneto Optical Crystals TGG Crystal With Diameter 3 Inches 76mm

Brand Name: Crystro
Model Number: CR210128-02
MOQ: 1pc
Price: USD 20000~5000/pc
Delivery Time: 2~4 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/COC
Material:
Boule Magneto Optical Crystals TGG Crystal With Diameter 3 Inches 76mm
Diameter:
76.2mm (101.6mm Max)
Place Of Origin:
Anhui, China
Growth Method:
Czochralski Method
Chemical Formula:
Tb3Ga5O12
Orientation:
<111><100>
Brand Name:
Crystro
Pack:
1000 Grade Room,transparent Box
Packaging Details:
Master carton with shockproof pearl cotton
Supply Ability:
50pcs per month
Highlight:

magneto optic materials

,

ggg substrate

,

Boule Magneto Optical Crystals

Product Description

Boule Magneto Optical Crystals TGG Crystal With Diameter 3 Inches 76mm



Crystro Supply TGG Crystal Boule With Diameter 4 Inches.

It is now the biggest size available in China.

Terbium Gallium Garnet (TGG) Crystal Used for Faraday Isolators and Rotators

TGG is an excellent magneto-optical crystal used in various Faraday devices (Rotator and Isolator) in the range of 400nm-1100nm, excluding 475-500nm.



ROHS TGG-ROHS-ENGLISH.PDF



Main Advantages:

  • Large Verdet constant (35 Rad T-1m-1).
  • Low optical losses (<0.1%/cm)
  • High thermal conductivity (7.4W m-1K-1).
  • High laser damage threshold (>1GW/cm2).

Main Properties:

Chemical Formula TB3Ga5O12
Lattic Parameter a=12.355Å
Growth Method Czochralski
Density 7.13g/cm3
Mohs Hardness 8.0
Melting Point 1725℃
Refractive Index 1.954 at 1064nm



CRYSTRO supply TGG crystal with:

Orientation [111] within ±15 arc min
Wave Front Distortion <1/8 wave
Extinction Ratio >35dB
Diameter Tolerance +0.00mm/-0.05mm
Length Tolerance +0.2mm/-0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 5 arc min
Surface Quality 10/5 Scratch/Dig
AR Coating <0.2%
Large Dimensions of Crystals 2.0--76 mm in diameter



Our Company:



Anhui Crystro has perfect automatic production equipment, the current products are mainly concentrated in the YAG, TGG, TSAG,GGG , LGS,Ce:GAGG ,Ce:YAG andCe: LuYAG production.

the application of advanced process technology of manufacturing,reducing energy consumption to ensure sustainable development field of research and development.
