Magneto Optical Crystals
Created with Pixso. Rotator And Isolator Magneto Optical Crystals TGG For Faraday Devices

Rotator And Isolator Magneto Optical Crystals TGG For Faraday Devices

Brand Name: Crystro
MOQ: 10pcs
Price: USD 20-100/pc
Delivery Time: 4-5 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Packaging Details:
Transparent clean box
Supply Ability:
10000pcs per week
Highlight:

magneto optic materials

,

gadolinium gallium garnet

,

Faraday Devices Magneto Optical Crystals

Product Description

Magneto-optical Crystal TGG for Faraday Devices ( Rotator and Isolator )

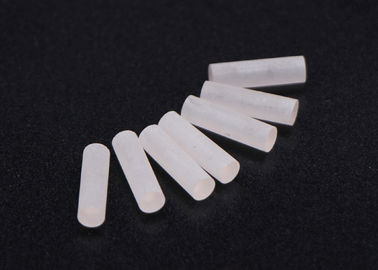

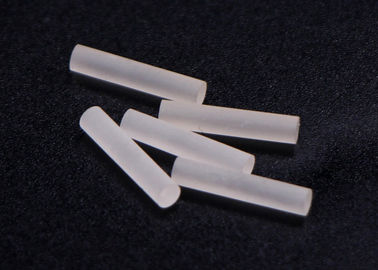

The magneto-optical crystal TGG is an optimum material for Faraday devices (Rotator and Isolator) in the range from 400nm-1100nm, excluding 470-500nm.The Faraday rotator consists of a TGG rod contained inside a special designed magnet. The rotation sense of the polarization of a light beam passing through the rotator only depends on the direction of the magnetic field and not on the direction of propagation of the light beam. The optical isolator is a Faraday rotator set between two suitably aligned polarizers which allows a light beam to pass through in one direction only. TGG has a combination of excellent properties such as large Verdet constant, low light loss, high thermal conductance and high light damage threshold which makes it a unique material for Faraday devices particularly suitable for YAG lasers and Ti: sapphire tunable lasers, ring lasers and seed injected lasers.



Features:

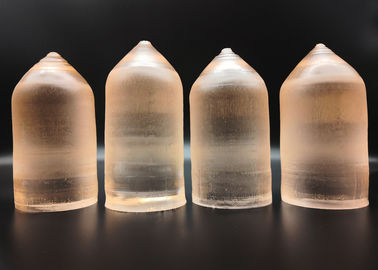

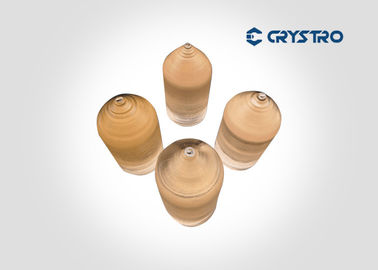

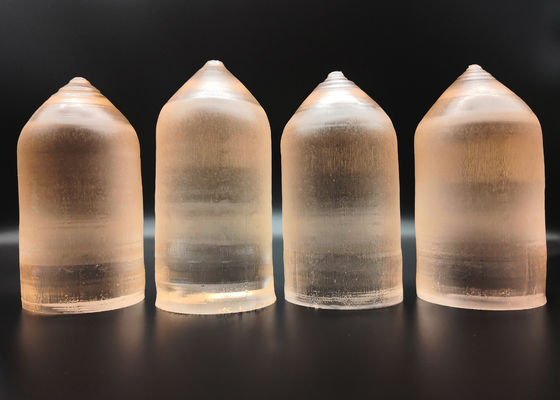

  • Large Size Boule Diameter: up to 3”
  • Extinction Ratio Typical: >35 dB  High Grade: >40 dB
  • Verdet Constant 40 rad/T/m at 1064 nm
  • Refractive Index 1.95 at 1064 nm



Applications:

  • Faraday Rotator;

  • Optical Isolator.



Main Properties:

Chemical Formula TB3Ga5O12
Lattic Parameter a=12.355Å
Growth Method Czochralski
Density 7.13g/cm3
Mohs Hardness 8.0
Melting Point 1725℃
Refractive Index 1.954 at 1064nm



CRYSTRO supply TGG crystal with:

Orientation [111] within ±15 arc min
Wave Front Distortion <1/8 wave
Extinction Ratio >35dB
Diameter Tolerance +0.00mm/-0.05mm
Length Tolerance +0.2mm/-0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 5 arc min
Surface Quality 10/5 Scratch/Dig
AR Coating <0.2%
Large Dimensions of Crystals 2.0--76 mm in diameter
