Gallium Gadolinium Garnet Magneto Optical Crystals Gd3Ga5O12 Or GGG Single Crystal

Gallium Gadolinium Garnet Magneto Optical Crystals Gd3Ga5O12 Or GGG Single Crystal

Brand Name:	Crystro
MOQ:	1pc
Price:	USD 20-500/pc
Delivery Time:	4-5weeks
Payment Terms:	T/T, Western Union, MoneyGram, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packaging Details:

Transparent clean box

Supply Ability:

5000pcs per month

Highlight:

lanthanum aluminate

single crystal elements

Optical Crystals Gd3Ga5O12

Product Description

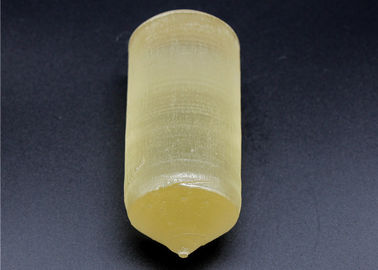

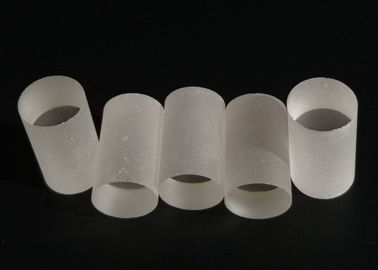

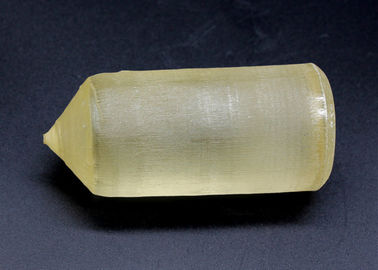

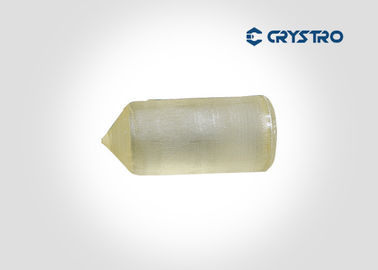

Gallium Gadolinium Garnet (Gd3Ga5O12 or GGG) Single Crystal

Gallium Gadolinium Garnet (Gd₃Ga₅O₁₂ or GGG) single crystal is material with good optical, mechanical and thermal properties which make it promising for use in fabrication of various optical components as well as substrate material for magneto – optical films and high – temperature superconductors.

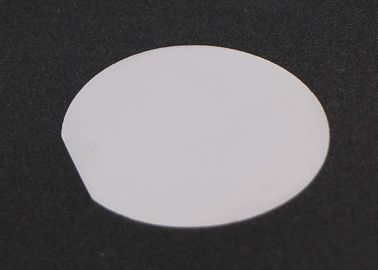

Standard products: wafers and substrates with sizes from 10 x 10 mm to dia. 76.2 mm, thickness 0.5 mm and 1.0 mm, one side or both sides polished 20/10 S/D, [111] or [100] cut. Other products are available on request.

Main Advantages:

Large dimensions,from 2.8 to 76mm.
Low optical losses (<0.1%/cm)
High thermal conductivity (7.4W m-1K-1).
High laser damage threshold (>1GW/cm2)

Main Properties:

Chemical Formula	Gd₃Ga₅O₁₂
Lattic Parameter	a=12.376Å
Growth Method	Czochralski
Density	7.13g/cm³
Mohs Hardness	8.0
Melting Point	1725℃
Refractive Index	1.954 at 1064nm

CRYSTRO supply GGG crystal with:

Orientation	[111] within ±15 arc min
Wave Front Distortion	<1/4 wave@632
Diameter Tolerance	±0.05mm
Length Tolerance	±0.2mm
Chamfer	0.10mm@45º
Flatness	<1/10 wave at 633nm
Parallelism	< 30 arc Seconds
Perpendicularity	< 15 arc min
Surface Quality	10/5 Scratch/Dig
Clear Apereture	>90%
Large Dimensions of Crystals	2.8-76 mm in diameter
