Mechanical Strength Laser Crystals For Laser Cutting And Welding Machine

Mechanical Strength Laser Crystals For Laser Cutting And Welding Machine

Brand Name:	Crystro
MOQ:	1pc
Price:	USD 100-2000/pc
Delivery Time:	4-5 weeks
Payment Terms:	T/T, Western Union, MoneyGram, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packaging Details:

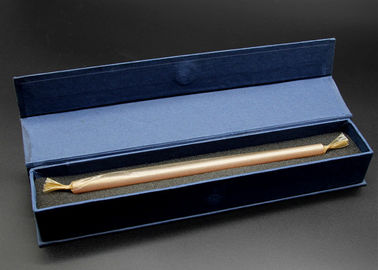

Gift box or clean box

Supply Ability:

500pcs per month

Highlight:

nd yag

yag laser rod

Mechanical Strength Laser Crystals

Product Description

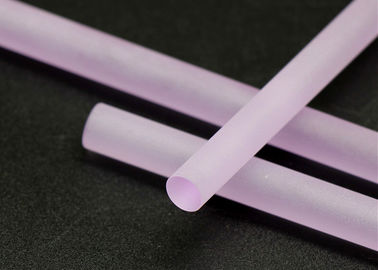

Nd:YAG Rods For Laser Cutting Machine Laser Welding Machine

Neodymium doped Yttrium Aluminum Garnet (Nd:YAG) is the most commonly employed solid state lasing medium for material processing applications. Nd:YAG has relatively good optical absorption and conversion efficiency, low lasing threshold and good thermal dissipation for high power operation.

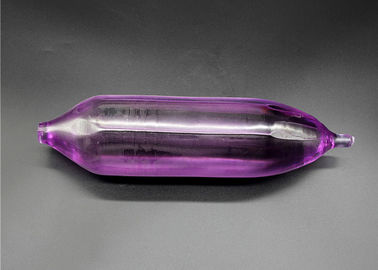

CRYSTRO manufactures neodymium doped yttrium aluminium garnet (Nd:YAG) crystals for use in industrial, medical, military and scientific applications. CRYSTRO grows Nd:YAG using the Czochralski growth method. Our production line covers crystal growth, machining and coating technologies.

Main Advantages:

High gain
Low threshold
High efficiency
Low loss at 1.06 μm
Good thermal conductivity and thermal shock characteristics
Mechanical strength
High optical quality

Main Properties:

Chemical Formula	Nd:Y₃Al₅O₁₂
Lattic Parameter	a=12.01Å
Growth Method	Czochralski
Density	4.5g/cm³
Mohs Hardness	8.5
Melting Point	1970℃
Refractive Index	1.82

CRYSTRO supply Nd:YAG crystal with:

Dimention	Diameter from 3 to 40mm
Nd Dopant level	From 0.3-1.5 atm%
Wave Front Distortion	1/8 wave@632
Diameter Tolerance	±0.05mm
Length Tolerance	±0.5mm
Chamfer	0.10mm@45º
Flatness	<1/10 wave at 633nm
Parallelism	< 10 arc Seconds
Perpendicularity	< 15 arc min
Surface Quality	10/5 Scratch/Dig
Clear Apereture	>90%
Damage Threshold	>500MW/cm²
