Magneto Optical Crystals
Created with Pixso. High Thermal Conductivity Faraday Rotator Terbium Gallium Garnet

High Thermal Conductivity Faraday Rotator Terbium Gallium Garnet

Brand Name: Crystro
Model Number: JCR200404-02
MOQ: 1pc
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/ROHS
Length:
Up To 100mm
Diameter:
Up To 78mm
Diameter Tolerance:
+0/-0.05mm
Length Tolerance:
+/-0.2mm
Orientation:
111
Extinction Ratio:
>35dB
Surface Quality:
10/5
AR Coating:
<0.2%
Packaging Details:
Transparent clean box
Supply Ability:
10000pcs per week
Highlight:

gadolinium gallium garnet

,

ggg substrate

,

100mm Terbium Gallium Garnet

Product Description

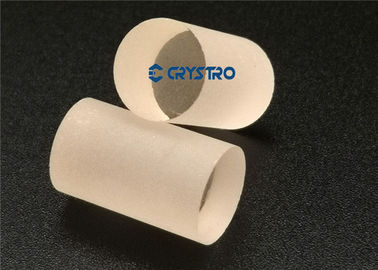

TGG Crystal Terbium Gallium Garnet Magneto Optical Crystal For Faraday Rotator



Description:



Terbium gallium garnet (Tb3Ga5O12, TGG) is a crucial category of magneto-optical materials for use in the visible and the near-infrared spectral regions((400-470nm and 500-1500nm)). The TGG crystal possesses a large Verdet constant (35 RadT−1m−1 at 1064 nm), high thermal conductivity (7.4 Wm−1K−1), low optical losses (< 0.1%/cm) and high laser damage threshold (> 1 GW/cm2). Therefore, it is an attractive Faraday-rotating crystal suitable for constructing magneto-optical isolators, magneto-optical switches, magneto-optical modulators and so on,widely used in YAG, Ti-doped sapphire and other multi-stage amplification, ring type, seed injection laser





Features:

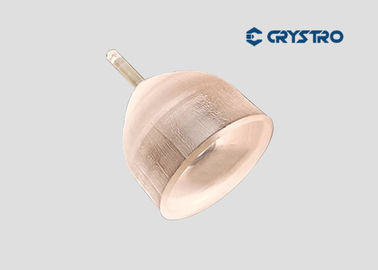

  • Large Size Boule Diameter: up to 3”
  • Extinction Ratio Typical: >35 dB  High Grade: >40 dB
  • Verdet Constant 40 rad/T/m at 1064 nm
  • Refractive Index 1.95 at 1064 nm



Applications:

  • Faraday Rotator;

  • Optical Isolator.



Main Properties:

Chemical Formula TB3Ga5O12
Lattic Parameter a=12.355Å
Growth Method Czochralski
Density 7.13g/cm3
Mohs Hardness 8.0
Melting Point 1725℃
Refractive Index 1.954 at 1064nm



CRYSTRO supply TGG crystal with:

Orientation [111] within ±15 arc min
Wave Front Distortion <1/8 wave
Extinction Ratio >35dB
Diameter Tolerance +0.00mm/-0.05mm
Length Tolerance +0.2mm/-0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 5 arc min
Surface Quality 10/5 Scratch/Dig
AR Coating <0.2%
Large Dimensions of Crystals 2.0--76 mm in diameter
