Magneto Optical Crystals
Created with Pixso. Density 5.91g/Cm3 Block TSAG Optical Crystals

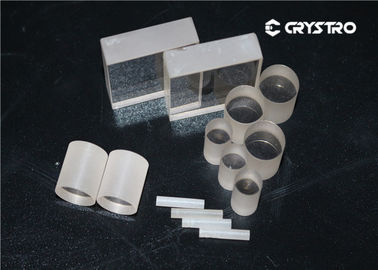

Density 5.91g/Cm3 Block TSAG Optical Crystals

Brand Name: Crystro
Model Number: JCR200608-03
MOQ: 1pc
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/ROHS
Type:
TSAG Block
Diameter:
1-70mm
Verdet Constant:
48 RadT-1m-1 At 1064 Nm
Absorption:
<3000 Ppm/cm At 1064 Nm
Extinction Ratio:
Up To 35dB
Surface Quality:
10-5
AR Coating:
<0.2%@1064nm
Wave Front Distortion:
<1/8 Wave
Packaging Details:
Transparent clean box
Supply Ability:
1000pcs per week
Highlight:

gadolinium gallium garnet

,

ggg substrate

,

TSAG Block Optical Crystals

Product Description

TSAG Crystals For Faraday Isolator Large Verdet Constant Than TGG Crystals



Description:



TSAG Faraday crystal is an ideal magneto-optical crystal, which is mainly used in the wavelength range of 400-1600 nanometers, namely the visible and infrared bands. TSAG is an indispensable crystal for the next generation of high-power lasers due to its advantages of high constant, good thermal and mechanical properties. Compared with TGG, the Verdet constant at 1064 nm of TSAG is 20 % higher and the absorption is 30 % lower. Recently, the optical and scintillation properties of TSAG (Tb3Sc2Al3O12) crystal was investigated, and capabilities to be used as a scintillator screen was demonstrated.





Features:

  • Large Verdet constant(48 radT-1m-1 at 1064 nm),about 20% higher than that of TGG;

  • Low absorption(<3000 ppm/cm at 1064 nm),about 30% less than that of TGG

  • High power compliant;

  • Low thermally-induced birefringence;

  • Making the isolator small.



Applications:

  • Faraday isolator based on TSAG crystal for high power lasers

  • Imaging applications:Scintillation properties of TSAG crystal for imaging applications



Main Properties:



Transmittance Range(bulk/uncoated) 400-1600nm
Crystal Structure Cubic,Space group Ia3d
Chemical Formula Tb3Sc2Al3O12
Lattice Parameter a=12.3Å

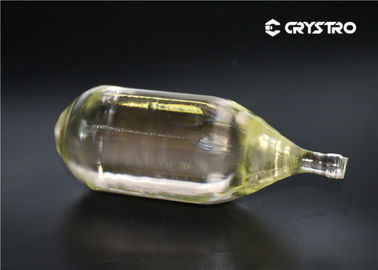

Growth Method Czochralski
Density 5.91g/cm3
Melting Point 1970℃±10℃





CRYSTRO supply TGG crystal with:





Orientation ±15′
Wavefront Distortion <λ/8
Extinction Ratio >30dB
Diameter Tolerance +/-0.05mm
Length Tolerance +/-0.1mm
Chamfer 0.1mm @ 45°
Flatness <λ/10 at 633nm
Parallelism <3′
Perpendicularity <5′
Surface Quality 10/5
AR coating <0.3% @ 1064nm
