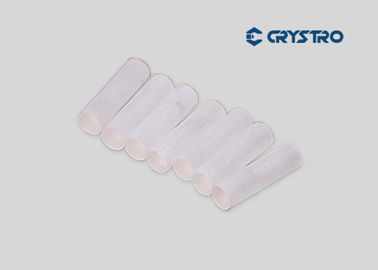

Magneto Optical Terbium Gallium Garne TGG Single Crystal

Brand Name: Crystro
Model Number: JCR200608-07
MOQ: 1pc
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
SGS/ROHS/REACH
Material:
TGG
Diameter:
1mm-100mm
Diameter Tolerance:
+0/-0.05mm
Length Tolerance:
+/-0.2mm
Extinction Ratio:
Up To 40dB
Surface Quality:
Polish 10-5
AR Coating:
<0.2%
Wave Front Distortion:
<1/8 Wave
Packaging Details:
Transparent clean box
Supply Ability:
5000pcs per month
Highlight:

TGG Single Crystal

,

Terbium Gallium Garne

,

Polish TGG Single Crystal

Product Description

TGG Single Crystal( Terbium Gallium Garne )Manufacturer China



Description:



Terbium gallium garnet (Tb3Ga5O12, TGG) is a crucial category of magneto-optical materials for use in the visible and the near-infrared spectral regions((400-470nm and 500-1500nm)). TGG singlecrystal is an excellent magneto-optical crystal used in various Faraday device s(Rotator and Isolator) in the range of 400nm-1100nm, ( excluding 475 - 500nm.). which can replace YIG crystal





Features:

  • Large Verdet Constant (Typical 35 dB,Up to 40dB)
  • Low optical losses (<0.1%/cm)
  • High thermal conductivity (7.4W m-1K-1).
  • High laser damage threshold (>1GW/cm2).
  • TGG has twice the Verdet constant of a terbium-doped glass.
  • Thermal conductivity is an order of magnitude greater than typical glass.



Applications:

  • Faraday Rotator;

  • Optical Isolator.

  • Magnetic sensor



Main Properties:

Chemical Formula TB3Ga5O12
Lattic Parameter a=12.355Å
Growth Method Czochralski
Density 7.13g/cm3
Mohs Hardness 8.0
Melting Point 1725℃
Refractive Index 1.954 at 1064nm





CRYSTRO supply TGG crystal with:



Orientation [111] within ±15 arc min
Wave Front Distortion <1/8 wave
Extinction Ratio >35dB
Diameter Tolerance +0.00mm/-0.05mm
Length Tolerance +0.2mm/-0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 5 arc min
Surface Quality 10/5 Scratch/Dig
AR Coating <0.2%
Large Dimensions of Crystals 2.0--76 mm in diameter
