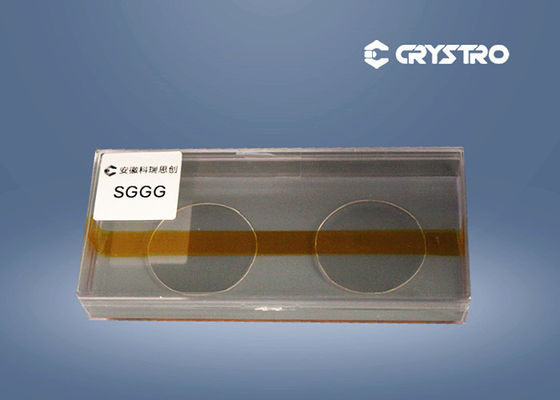

YIG SGGG Substrates Wafer

Name: YIG SGGG Substrates Wafer
Brand: ANHUI CRYSTRO CRYSTAL MATERIALS Co., Ltd.
SKU: CR200629-02
Price: 110.00 USD
Availability: InStock

Brand Name:	Crystro
Model Number:	CR200629-02
MOQ:	1pc
Delivery Time:	4-5weeks
Payment Terms:	T/T, Western Union, MoneyGram, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS/ROHS

Material:

SGGG

Flatness:

<1/10 Wave At 633nm

Name:

Subsituted Gadolinium Gallium Garnet SGGG

Crystal Growth Method:

Czochralski

Orientation:

(100), (111) +/-0.5°

Size:

10 Mm X 10 Mm X 0.5 Mm

Diameter Tolerance:

±0.05mm

Length Tolerance:

±0.2mm

Packaging Details:

Transparent clean box

Supply Ability:

5000pcs per month

Highlight:

YIG SGGG Substrate

Subsituted Gadolinium Gallium Garnet

YIG SGGG Substrates Wafer

Product Description

YIG SGGG Substrates Wafer

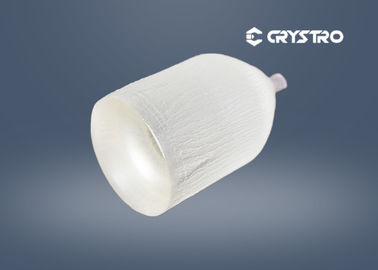

SGGG single crystal, substituted gadolinium gallium garnet is grown by Czochralski method .

SGGG substrate is excellent for for growing bismuth-substituted iron garnet epitaxial films,is good material for YIG,BiYIG,GdBIG.

Anhui Crystro Crystal Materials Co., Ltd. is specialized in research and development of crystal science and technology, our
business scope mainly concentrated in high-tech crystal materials research and development, manufacture and multidisciplinary solutions. The service industries include: communications, aerospace, automobile, medical, beauty and other industries.

Properties:

Crystal properties
Crystal growth method	Czochralski
Crystal growth orientation	(100), (111)
Maximum size	3 inch diameter
Variations	Dopands on request
Crystallographic properties
Crystallographic structure	Cubic
	a = 12.383 Å
	a = 12.505 Å SGGG
Mineralogical	Garnet
Twinning structure	Perfect
Colour	Colourless / Brownish SGGG
Physical properties
Density	7.09 g/cm3
Melting point	1730 °C
Hardness	7.5 (Mohs)
Dielectric constant	30
Dielectric loss tangent (10 GHz)	ca. 3.0 * 10_4
Optical properties
Transmission range	0.3 to 7.0 mm
Refraction index:	nd = 1.9708 at 577 nm

CRYSTRO supply GGG crystal with:

Orientation	<111> <100> within ±15 arc min
Wave Front Distortion	<1/4 wave@632
Diameter Tolerance	±0.05mm
Length Tolerance	±0.2mm
Chamfer	0.10mm@45º
Flatness	<1/10 wave at 633nm
Parallelism	< 30 arc Seconds
Perpendicularity	< 15 arc min
Surface Quality	10/5 Scratch/Dig
Clear Apereture	>90%
Large Dimensions of Crystals	2.8-76 mm in diameter

Application:

Substitute GGG

YIG,BIG epitaxy film;

Microwave devices;
