Product Details:
Payment & Shipping Terms:
|
| Material: | Cr:Y3Al5O12 | Orientation: | [100] Or [110] < ±0.5° |
|---|---|---|---|
| Usage:: | Passive Q Switch | Size Tolerance:: | 0/-0.05mm |
| Surface Finish:: | Lambda/8@632nm | Coating: | AR Coating |
| Damage Threshold: | 500-1000MW/cm2 | Hardness: | 8.5 |
| Highlight: | Y3Al5O12 Laser Crystals,10mm Q Switch Laser Crystals,AR Coating Yag Laser Crystals |
||

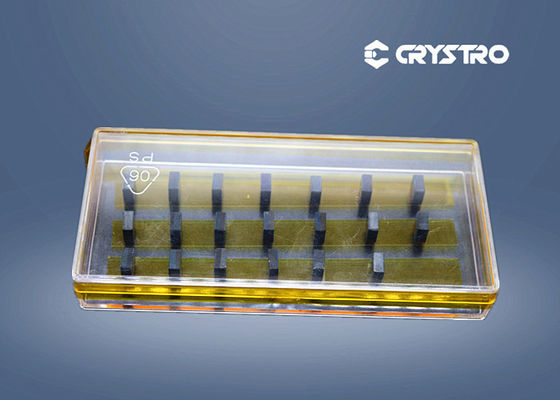

Passive q-switch Cr4+ Yag Laser Rod Cr:Y3Al5O12
Cr4+:YAG crystals have several advantages when compared to traditional Passive Q-switching choices such as organic dyes and colour centres materials. Crystal Passive Q-switch is preferred for simplicity of manufacturing and operation, low cost, and reduced system size and weight. Cr4+:YAG is chemically stable, UV resistant and it is durable. Cr4+:YAG will operate over a wide range of temperatures and conditions. The good thermal conductivity of Cr4+:YAG is well suited for high average power applications.
Main features
1.High chemica stability and raliability
2.High damage threshold of 500-1000 MW/cm2
3.Long life time and good thermal conductivity
4.Being easy to be operated
Applications
1.Passively Q-switched lasers for laser rangefinders, LIDAR and LIBS systems
2.Laser systems where short pulses are required.
Main Properties:
| Diameter | 6.35 mm+0.05 mm |
| Typical Length | 2 mm to 10 mm |
| Parallelism | 30 arc-sec. max |
| Flatness | λ/2 at 632 nm Max. |
| Refractive Index | 1.82 at 1.064µm |
| Standard Optical Densities | 0.40 +/- 10% |
| 0.50 +/- 10% | |
| 0.60 +/- 10% | |
| 1.00 +/- 10% | |
| Saturation Fluence | near to 0.5 J/cm2 |
| Recovery Time | 8.5 µs |
| Repetition Rate | > 30 Hz |
| AR coating | 0.3% per surface |
| Damage Threshold | 500 - 1000 MW/cm2 |
| Chemical Formula | Y3Al5O12:Cr4+ |
| Orientation | <111 > cubic |
