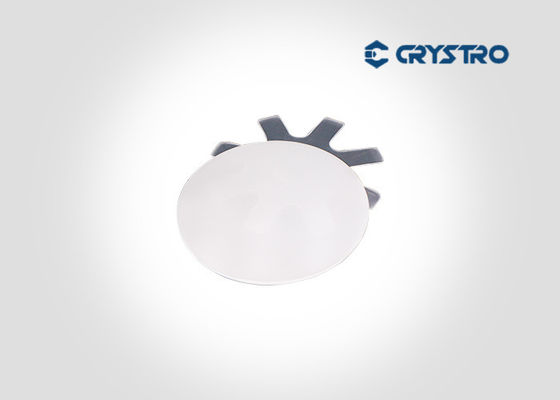

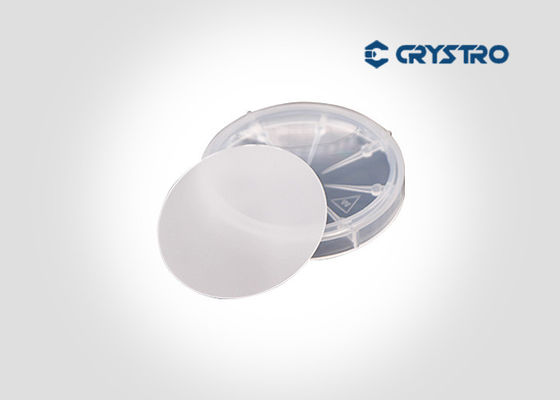

7.13g/Cm3 Gd3Ga5O12 1064nm Magneto GGG Optical Substrate

7.13g/Cm3 Gd3Ga5O12 1064nm Magneto GGG Optical Substrate
7.13g/Cm3 Gd3Ga5O12 1064nm Magneto GGG Optical Substrate
video play

Large Image :  7.13g/Cm3 Gd3Ga5O12 1064nm Magneto GGG Optical Substrate

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS/COC
Model Number: CR200822-02
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Transparent clean box
Delivery Time: 4-5weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000pcs per month
Detailed Product Description
Material: Gadolinium Gallium Garnet Chemical Formular: Gd3Ga5O12
Lattice Constant: 12.383A Growth Method: Czochralski
Density: 7.13g/cm3 Mohs Hardness: 8.0
Melting Point: 1725° Refractive Index: 1.954@1064nm
High Light:

GGG Optical Substrate

,

Gd3Ga5O12

,

Magneto Optical Substrate

Magneto-optical Crystal Gadolinium Gallium Garnet ( GGG )

Gadolinium Gallium Garnet (GGG, Gd3Ga5O12) is a synthetic crystalline material of the garnet group, with good mechanical, thermal, and optical properties. It is typically colorless. It has cubic lattice, density 7.08 g/cm3 and Mohs hardness is variously noted as 6.5 and 7.5. Its crystals are made by Czochralski method and can be made with addition of various dopants for modification of color. It is used in fabrication of various optical components and as substrate material for magneto–optical films. It also finds use in jewelry as a diamond simulant.



Main Advantages:



  • Large dimensions,up to 4''
  • High thermal conductivity (7.4W m-1K-1).
  • High laser damage threshold (>1GW/cm2)
  • Low optical losses (<0.1%/cm)



Main Properties:

Chemical Formula  Gd3Ga5O12
Lattic Parameter  a=12.376Å
Growth Method  Czochralski
Density  7.13g/cm3
Mohs Hardness  8.0
Melting Point  1725℃
Refractive Index  1.954 at 1064nm


CRYSTRO supply GGG crystal with:

Orientation  [111] within ±15 arc min
Wave Front Distortion  <1/4 wave@632
Diameter Tolerance  ±0.05mm
Length Tolerance  ±0.2mm
Chamfer  0.10mm@45º
Flatness  <1/10 wave at 633nm
Parallelism  < 30 arc Seconds
Perpendicularity  < 15 arc min
Surface Quality  10/5 Scratch/Dig
Clear Apereture  >90%
Large Dimensions of Crystals

 2.8-76 mm in diameter
