GGG Crystal
Created with Pixso. Gd3Ga5O12 111 Orientation 3 Inch GGG Optical Crystals

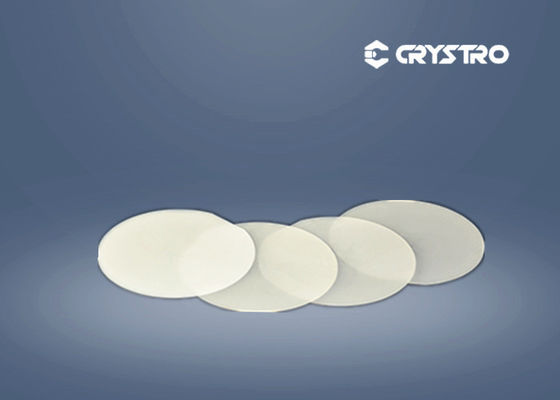

Gd3Ga5O12 111 Orientation 3 Inch GGG Optical Crystals

Brand Name: Crystro
Model Number: CR200902-02
MOQ: 1pc
Delivery Time: 4-5weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/COC
Material:
Gadolinium Gallium Garnet
Chemical Formular:
Gd3Ga5O12
Orientation:
<111>
Refractive Index:
1.954@1064nm
Lattice Constant:
12.383A
Growth Method:
Czochralski
Mohs Hardn:
8.0
Melting Point:
1725°

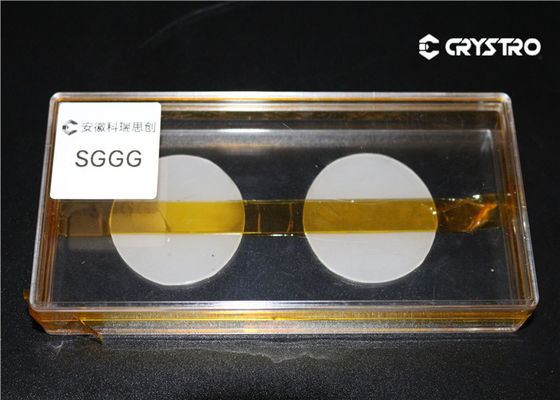

Packaging Details:
Transparent clean box
Supply Ability:
5000pcs per month
Highlight:

GGG Optical Crystals

,

3 Inch Gadolinium Gallium Garnet

,

Gd3Ga5O12

Product Description

Magneto-optical Crystal Gadolinium Gallium Garnet ( GGG )

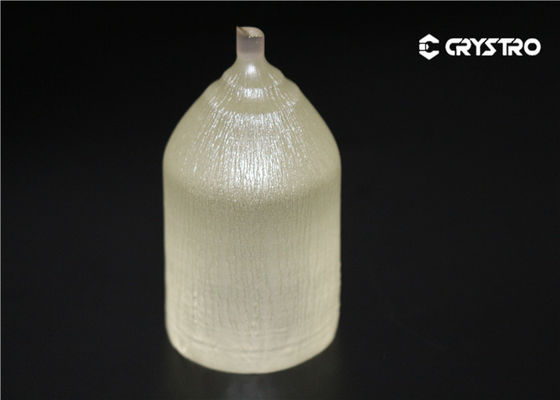

Gadolinium Gallium Garnet (GGG, Gd3Ga5O12) is a synthetic crystalline material of the garnet group, with good mechanical, thermal, and optical properties. It is typically colorless. It has cubic lattice, density 7.08 g/cm3 and Mohs hardness is variously noted as 6.5 and 7.5. Its crystals are made by Czochralski method and can be made with addition of various dopants for modification of color. It is used in fabrication of various optical components and as substrate material for magneto–optical films. It also finds use in jewelry as a diamond simulant.



Main Advantages:



  • Large dimensions 3inch
  • Double Side Polished
  • High thermal conductivity (7.4W m-1K-1).
  • High laser damage threshold (>1GW/cm2)
  • Low optical losses (<0.1%/cm)
  • Orientation,<111> <100>



Main Properties:

Chemical Formula  Gd3Ga5O12
Lattic Parameter  a=12.376Å
Growth Method  Czochralski
Density  7.13g/cm3
Mohs Hardness  8.0
Melting Point  1725℃
Refractive Index  1.954 at 1064nm


CRYSTRO supply GGG crystal with:

Orientation  [111] within ±15 arc min
Wave Front Distortion  <1/4 wave@632
Diameter Tolerance  ±0.05mm
Length Tolerance  ±0.05mm
Chamfer  0.10mm@45º
Flatness  <1/10 wave at 633nm
Parallelism  < 30 arc Seconds
Perpendicularity  < 15 arc min
Surface Quality  10/5 Scratch/Dig
Clear Apereture  >90%
Large Dimensions of Crystals

 diameter up to 4inch
