GGG Crystal
Created with Pixso. 3" Gadolinium Gallium Garnet GGG Single Crystal Substrates

3" Gadolinium Gallium Garnet GGG Single Crystal Substrates

Brand Name: Crystro
Model Number: CR2010-01
MOQ: 1pc
Delivery Time: 4-5weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/COC/ROHS/REACH
Material:
Gadolinium Gallium Garnet
Chemical Formular:
Gd3Ga5O12
Orientation:
<111> <100>
Refractive Index:
1.954@1064nm
Growth Method:
Czochralski
Diameter:
2inch,3inch,4inch
Thinkness:
0.5mm,1mm
Polishing:
Single Or Double Side Polish
Packaging Details:
Transparent clean box
Supply Ability:
5000pcs per month
Highlight:

3" gadolinium gallium garnet

,

GGG Single Crystal Substrates

,

3" Gd3Ga5O12

Product Description

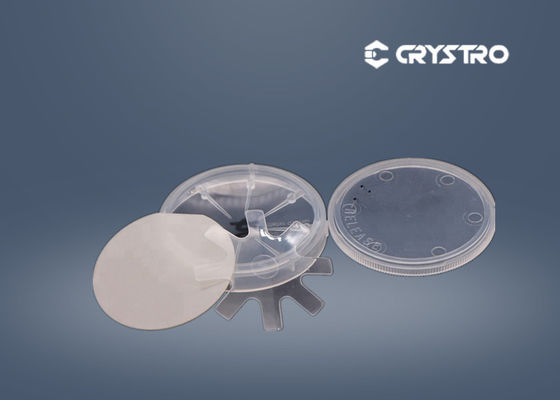

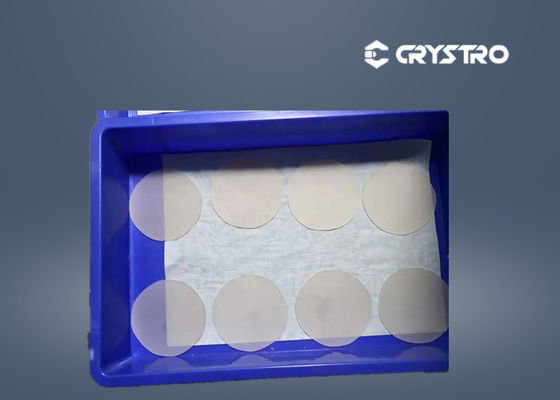

3inch diameter single crystal substrate GGG Wafer

Gadolinium Gallium Garnet (GGG, Gd3Ga5O12) is a synthetic crystalline material of the garnet group, with good mechanical, thermal, and optical properties. It is typically colorless. It has cubic lattice, density 7.08 g/cm3 and Mohs hardness is variously noted as 6.5 and 7.5. Its crystals are made by Czochralski method and can be made with addition of various dopants for modification of color. It is used in fabrication of various optical components and as substrate material for magneto–optical films. It also finds use in jewelry as a diamond simulant.



Main Advantages:



  • Large dimensions,3inch,4inch
  • Orientation,<100>±0.2°
  • High thermal conductivity (7.4W m-1K-1).
  • High laser damage threshold (>1GW/cm2)



Main Properties:

Chemical Formula  Gd3Ga5O12
Lattic Parameter  a=12.376Å
Growth Method  Czochralski
Density  7.13g/cm3
Mohs Hardness  8.0
Melting Point  1725℃
Refractive Index  1.954 at 1064nm





Contact us for more information!
