Magneto Optical Crystals
Created with Pixso. Dia 10*15 Mm BiG Size TGG Single Crystal Low Absorption

Dia 10*15 Mm BiG Size TGG Single Crystal Low Absorption

Brand Name: Crystro
Model Number: CR20121229-01
MOQ: 1pcs
Price: USD 10-100/pc
Delivery Time: 1-4 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
CHINA
Certification:
SGS/ROHS/REACH
Material:
Dia 10*15 Mm BiG Size TGG Single Crystal Low Absorption
Application:
Optical Isolator
Optical Loss:
<0.1%/cm
Thermal Conductivity:
7.4W M-1 K-1
Laser Damage Thereshold:
>1GW/cm2
Orientation:
<111> /<100>within ±15 Arc Min
Diameter Tolerance:
+0.00mm/-0.05mm
Length Tolerance:
+0.2mm/-0.2mm
Packaging Details:
Transparent clean box
Supply Ability:
5000pcs per week
Highlight:

BiG Size TGG Single Crystal

,

10x15Mm TGG Single Crystal

,

Low Absorption TGG Single Crystal

Product Description

Dia 10*15 Mm BiG Size TGG Single Crystal Low Absorption



Description:



Crystro Supply TGG Crystal Boule With Diameter 4 Inches.

It is now the biggest size available in China.

Terbium Gallium Garnet (TGG) Crystal Used for Faraday Isolators and Rotators

TGG is an excellent magneto-optical crystal used in various Faraday devices (Rotator and Isolator) in the range of 400nm-1100nm, excluding 475-500nm.





The magneto-optical crystal TGG crystal is key material for free space faraday isolator. It's an optimum material for Faraday devices (Rotator and Isolator) in the wavelength range 400 nm-1100 nm, excluding 470-500 nm. TGG crystal has a combination of excellent properties such as large Verdet constant, low light loss, high thermal conductance and high light damage threshold which makes it a unique material for Faraday devices.







Features:

Large Size Boule Diameter: up to 3”

Extinction Ratio Typical: >35 dB  High Grade: >40 dB

Verdet Constant 40 rad/T/m at 1064 nm

Refractive Index 1.95 at 1064 nm



Applications:

Faraday Rotator;

Free Space Isolator;





TGG-ROHS-ENGLISH.PDF



RoHS Document:



TGG REACH-English.PDF

TGG Crystal.pdf



Main Properties:

Chemical Formula TB3Ga5O12
Lattic Parameter a=12.355Å
Growth Method Czochralski
Density 7.13g/cm3
Mohs Hardness 8.0
Melting Point 1725℃
Refractive Index 1.954 at 1064nm



CRYSTRO supply TGG crystal with:

Orientation [111] within ±15 arc min
Wave Front Distortion <1/8 wave
Extinction Ratio >35dB
Diameter Tolerance +0.00mm/-0.05mm
Length Tolerance +0.2mm/-0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 5 arc min
Surface Quality 10/5 Scratch/Dig
AR Coating <0.2%
Large Dimensions of Crystals 2.0--76 mm in diamete





Our Company:




Factory Size
3,000-5,000 square meters
Factory Country/Region
No. 10 Hezhang Road,Economic Development Zone,Hefei,Anhui,China
No. of Production Lines
Above 10
Contract Manufacturing
OEM Service OfferedDesign Service OfferedBuyer Label Offered
Annual Output Value
US$5 Million - US$10 Million

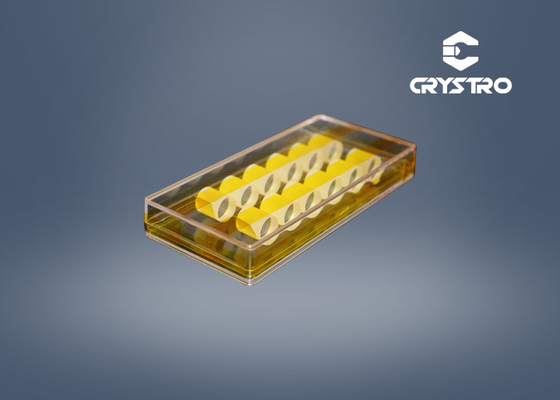

                                    Dia 10*15 Mm BiG Size TGG Single Crystal Low Absorption 0

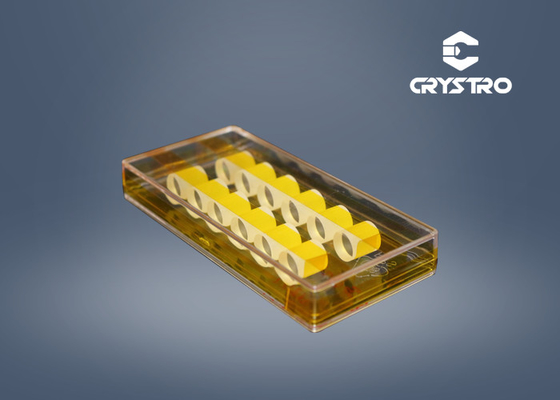

Dia 10*15 Mm BiG Size TGG Single Crystal Low Absorption 1
