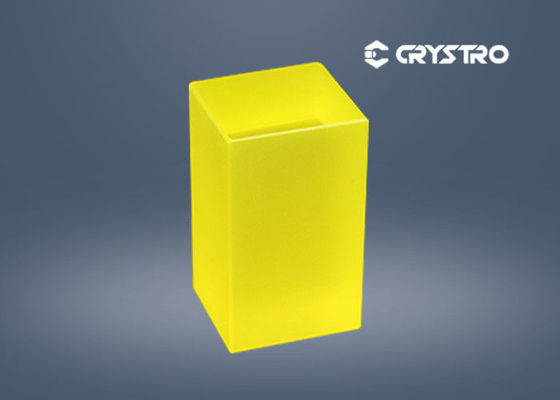

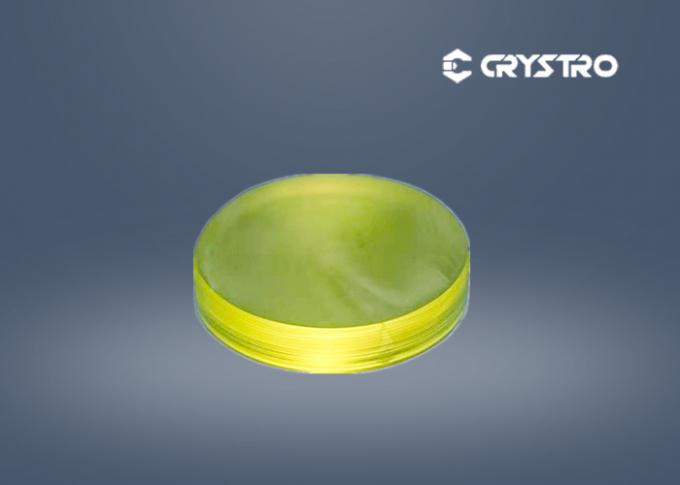

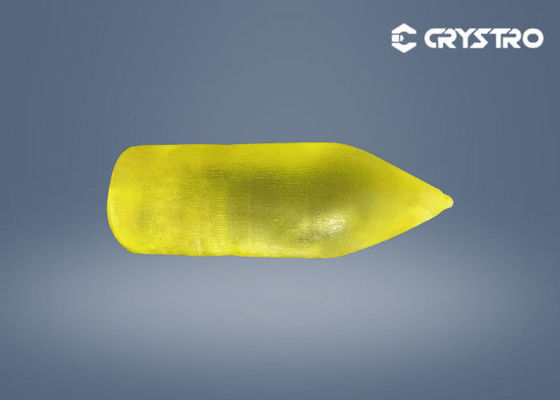

Single Photon Emission Computed Tomography (SPECT) GAGG(ce) scintillator

Ce: GAGG crystal exhibits stable physical and chemical properties, high thermal conductivity, and resistance to harsh environments. It exhibits excellent scintillating performance, for example, high scintillating efficiency, high light yield, and fast decay time. Ce: GAGG crystals are widely used in photomultiplier tubes, photoelectric counters, scintillation screens, and other devices. And used in high-energy particle detection and other fields, such as beta rays, gamma rays. Because of the excellent scintillation performance of Ce: YAG crystal, it is widely used in CT, scanning electron microscope SEM and other equipment. In particular, the linear response of GAGG crystals to gamma rays indicates that Ce: GAGG crystals are a promising medical imaging technology, such as X-ray photography, X-ray computed tomography (CT), and positron emission tomography (PET). ). Single crystal scintillators are often used in scanning electron microscopy (SEM).

High density
High light yield
Fast decay time
Chemically inert
High sensitivity
High energy resolution

Main Advantages:

1. Relatively bright – emitting >50,000 photons/MeV

2. Good absorbers with good stopping powers - density 6.63 g/cm³

3. Broadly emitting with a 540nm peak

4. Good Energy resolution

Main Applications:

γ-ray detection
X-ray medical imaging
Nuclear physics
Nuclear radiation detection
PET

Main Properties:
