Scintilation Crystals
Created with Pixso. Dia 1.5mm Scintillation Ce GAGG Scintilation Single Crystal Rod

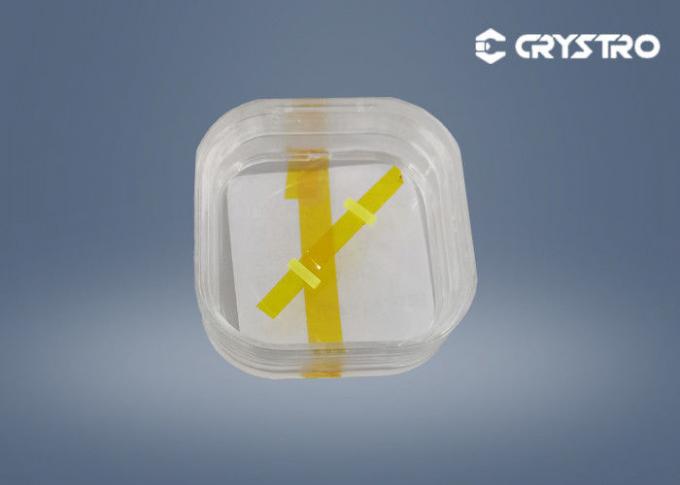

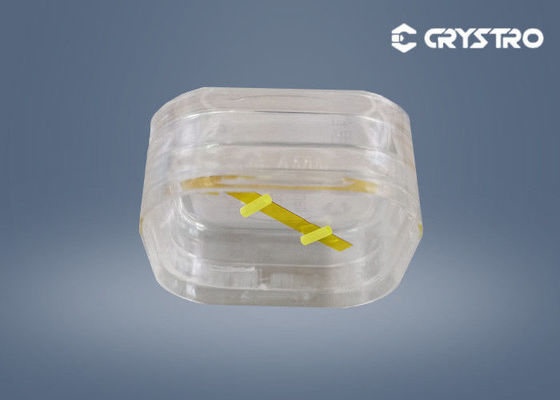

Dia 1.5mm Scintillation Ce GAGG Scintilation Single Crystal Rod

Brand Name: Crystro
Model Number: CR210629-01
MOQ: 1pc
Price: USD 20-200/pc
Delivery Time: 4-5 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
ISO9001,RoHS,Reach
Item/Material/Product:
Dia1.5mm Ce:GAGG Scintilation Single Crystal Rod
Size:
Dia1.5x5mm
Chemical Formular:
Gd3Al2Ga3O12
Density:
6.63g/cm3
Mohs Hardmess:
8
Melting Point:
1850℃
Size Tolerance:
±0.05mm
Application:
PET,SPECT,CT..

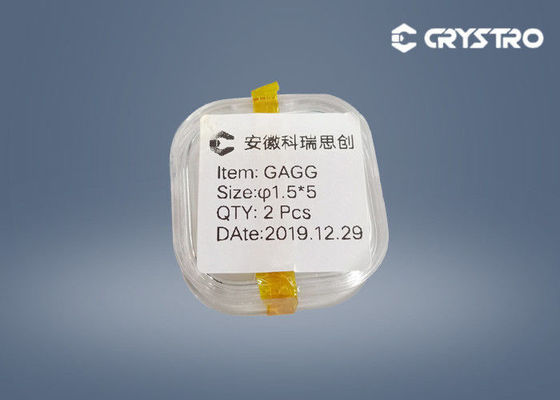

Packaging Details:
Transparent clean box
Supply Ability:
5000pcs per month
Highlight:

Scintilation Single Crystal Rod

,

Ce GAGG Single Crystal Rod

,

1.5mm ce gagg

Product Description

Dia1.5mm Ce:GAGG Scintilation Single Crystal Rod



Ce: GAGG crystal (chemical formula Ce: Gd3Al2Ga3O12, also known as cerium-doped gadolinium aluminum gallium garnet crystal) is a scintillation crystal with excellent comprehensive performance, which is widely used in scientific research and industrial high-energy ray detection. Ce: The effective atomic number of the GAGG crystal is as high as 54.4, and the peak wavelength of the emission spectrum located at 520nm, which matches well with the sensitive wavelength range of the photomultiplier tube (PMT) and silicon photodiode (PD).



GAGG(ce) is a very promising scintillator in high energy industrial field, when it was characterized on life test under 115kv, 3mA and the radiation source located at a 150 mm distance from crystal, after 20 hours the performance is nearly the same as the fresh one. It means it has a good prospect to withstand high dose under X-ray irradiation, of course it depends on irradiation conditions and in case of going further with GAGG for NDT further exact test need to be conducted.



Anhui Crystro participate in the kinds exhibitions every year: Laser World of Photonics Munich, Shanghai, Photonics West in San Francisco, CIOE in Shenzhen, etc.

CRYSTRO can offers GAGG with:


High density
High light yield
Fast decay time
Chemically inert
High sensitivity
High energy resolution



Main Advantages:



1. Relatively bright – emitting >50,000 photons/MeV

2. Good absorbers with good stopping powers - density 6.63 g/cm³

3. Broadly emitting with a 540nm peak

4. Good Energy resolution



Main Applications:



γ-ray detection
X-ray medical imaging
Nuclear physics
Nuclear radiation detection
PET



Main Properties:



Properties Units
Wavelength (Max. Emission) 520 nm
Wavelength Range 475 - 800 nm
Decay Time 50 - 150 ns
Light Yield 40 - 60 photons/keV
Refractive Index 1.9 @540nm
Density 6.63 g/cm³
Atomic Number (Effective) 54.4
Melting Point 1850 ºC
Thermal Expansion Coeff. TBA x 10‾⁶ C¹
Hardness 8 Mhos



Property Ce:GAGG
Chemical composition Gd3AlxGa5-xO12
Symmetry Cubic
Structure Ia3d
Mohs Hardness 8
Density(g/cm3) 6.63
Refractive index(λ=550nm) 1.9
Emission peak (nm) 540
Light yield (Photons•Mev-1) >50000
Decay time(ns) 90
Energy resolution <6%
Zeff 54
