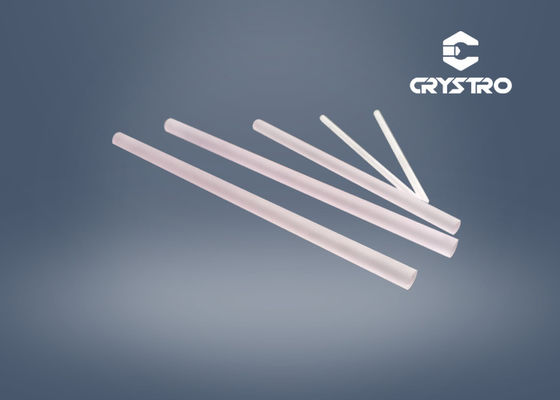

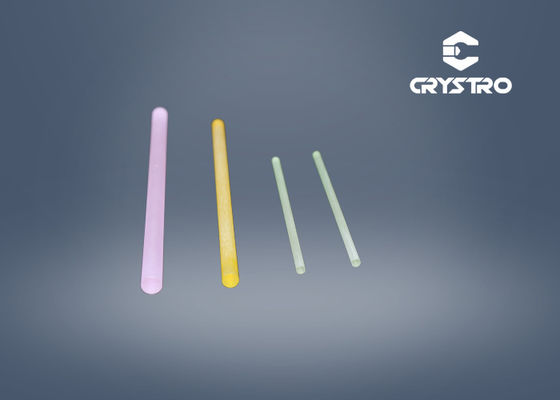

Dia 8mm Yttrium Aluminum Garnet Laser Rods Nd YAG Single Crystal

Dia 8mm Yttrium Aluminum Garnet Laser Rods Nd YAG Single Crystal
Dia 8mm Yttrium Aluminum Garnet Laser Rods Nd YAG Single Crystal Dia 8mm Yttrium Aluminum Garnet Laser Rods Nd YAG Single Crystal

Large Image :  Dia 8mm Yttrium Aluminum Garnet Laser Rods Nd YAG Single Crystal

Product Details:
Place of Origin: CHINA
Brand Name: Crystro
Certification: SGS/COC/ROHS/REACH
Model Number: CR210630-03
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD 100-2000/pc
Packaging Details: Gift box or clean box
Delivery Time: 3 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 500pcs per month
Detailed Product Description
Item:: Dia8*185mm Yttrium Aluminum Garnet Laser Rods Nd YAG Single Crystal Size: D8X185mm
Size Tolerance: ±0.05mm Growth Method: Czochralski
Dimension: Customized Polish: S/D 10/5
Chamfer: <0.10mm/cm2 Damage Threshold: >500MW/cm2
High Light:

Dia 8mm yag single crystal

,

Laser Rods yag single crystal

,

Yttrium Aluminum Garnet Laser Crystals

Dia8*185mm Yttrium Aluminum Garnet Laser Rods Nd YAG Single Crystal



Nd:YAG is a kind of laser crystal used in solid-state lasers.

Crystro can offer customized dopant and size as required,like 1.1% Nd doped,size D8*150,D6*180...

Neodymium Doped Yttrium Aluminum Garnet – Nd:YAG laser crystals remains to be the most popular material for solid-state laser manufacturing. Good fluorescence lifetime, thermal conductivity and robust nature make Nd:YAG laser crystals suitable for high power continuous wave, high intensity Q-switched and single mode operation.





Features:

  • Its laser parameters are a good compromise between the strengths and weaknesses of its competition.
  • Compared with others laser crystals, its fluorescence lifetime is twice more than Nd:YVO4,and thermal conductivity is also better.



Applications:



  • Nd:YAG can produce blue laser with the frequency-doubling of 946nm
  • Nd:YAG can be operated in a very high power laser up to kw level
  • Nd:YAG can be Q-switched with Cr4+YAG directly



Main Properties:

Chemical Formula  Nd:Y3Al5O12
Lattic Parameter  a=12.01Å
Growth Method  Czochralski
Density  4.5g/cm3
Mohs Hardness  8.5
Melting Point  1970℃
Refractive Index  1.82



CRYSTRO supply Nd:YAG crystal with:

Dimention  Diameter from 3 to 40mm
Nd Dopant level  From 0.3-1.5 atm%
Wave Front Distortion  1/8 wave@632
Diameter Tolerance  ±0.05mm
Length Tolerance  ±0.5mm
Chamfer  0.10mm@45º
Flatness  <1/10 wave at 633nm
Parallelism  < 10 arc Seconds
Perpendicularity  < 15 arc min
Surface Quality  10/5 Scratch/Dig
Clear Apereture  >90%
Damage Threshold  >500MW/cm2
