| Brand Name: | Crystro |
| Model Number: | CR211230-07 |
| MOQ: | 1pc |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal |

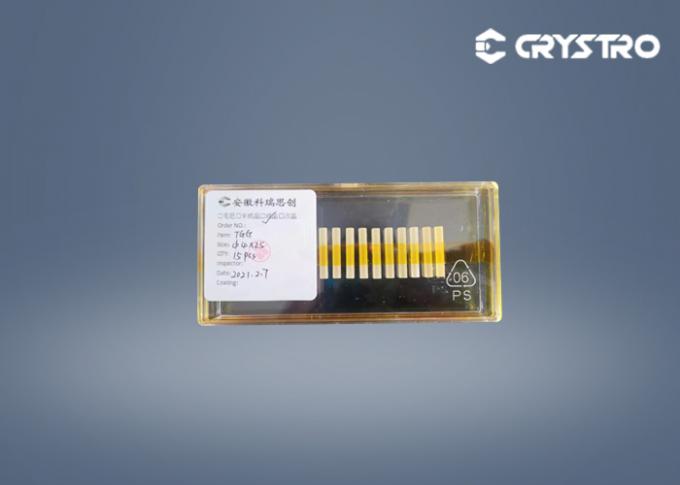

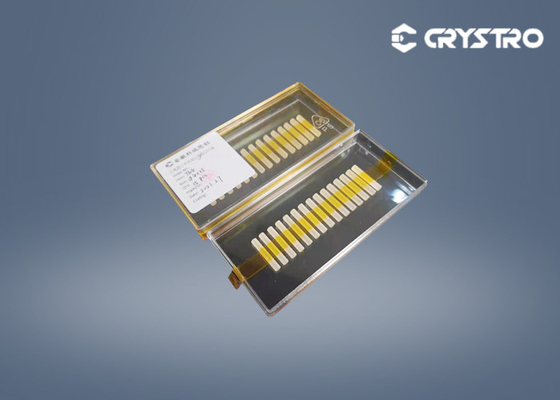

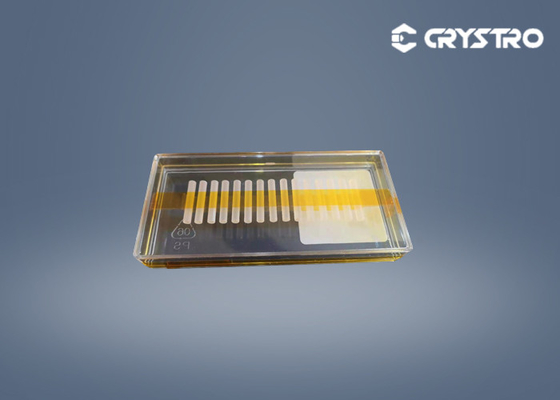

Dia 4 x 25mm Length TB3Ga5O12 TGG Single Crystal For Faraday Isolator
Faraday polarizer is composed of the TGG crystal rod and a specially designed magnet. The polarization of the beam through the magneto-optical materials deflexed and direction of the deflection only has some relations with the direction of the magnetic field and has nothing to do with the direction of the beam propagation. An optical isolator is an optical component which allows the transmission of polarized light in only one direction.
Applications:
Faraday Rotator
Faraday polarizer
Magnetic sensor
Faraday Isolator
Main Properties:
| Chemical Formula | TB3Ga5O12 |
| Lattic Parameter | a=12.355Å |
| Growth Method | Czochralski |
| Density | 7.13g/cm3 |
| Mohs Hardness | 8.0 |
| Melting Point | 1725℃ |
| Refractive Index | 1.954 at 1064nm |
Advantages:
CRYSTRO supply TGG crystal with:
| Orientation | [111] within ±15 arc min |
| Wave Front Distortion | <1/8 wave |
| Extinction Ratio | >35dB |
| Diameter Tolerance | +0.00mm/-0.05mm |
| Length Tolerance | +0.2mm/-0.2mm |
| Chamfer | 0.10mm@45º |
| Flatness | <1/10 wave at 633nm |
| Parallelism | < 30 arc Seconds |
| Perpendicularity | < 5 arc min |
| Surface Quality | 10/5 Scratch/Dig |
| AR Coating | <0.2% |
| Large Dimensions of Crystals | 2.0--76 mm in diameter |
