Piezoelectric Effect Crystals
Created with Pixso. Yellow Black Fe2O3 Doped LiTaO3 Wafer Used For Photorefractive

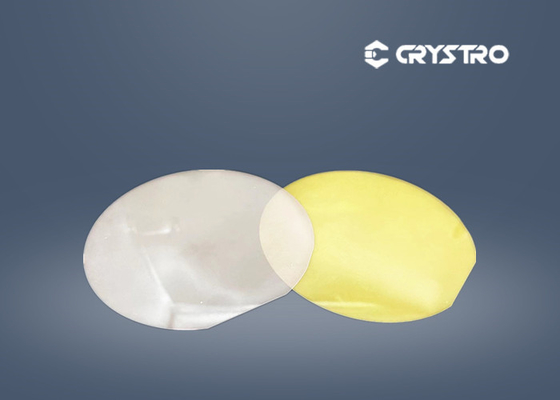

Yellow Black Fe2O3 Doped LiTaO3 Wafer Used For Photorefractive

Brand Name: Crystro
Model Number: CR2202241-06
MOQ: 1pc
Price: USD 20~200/pc
Delivery Time: 4-5 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/COC
Material:
Yellow Black Fe2O3 Doped LiTaO3 Wafer Used For Photorefractive Applications
Melting Point:
1650℃
Density:
7.45g/cm3
Transparency Range:
400 – 5000 Nm
Orientation:
X-112°Y,36°Y,42°Y±0.5
Delivery:
1-4 Weeks
Shipment:
Express,DHL.Fedex
Packing:

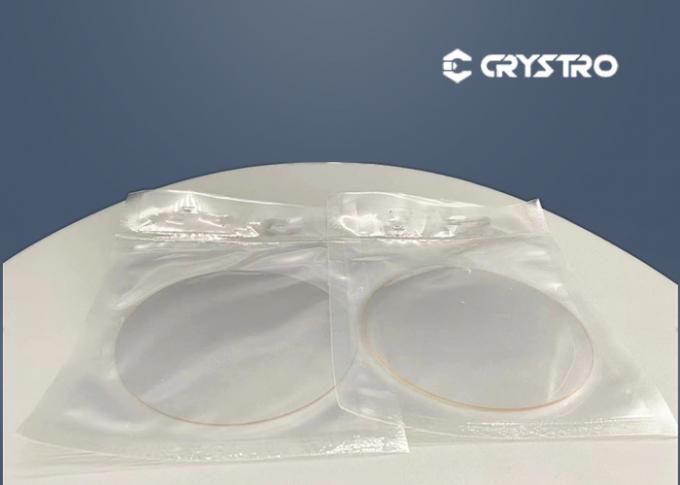

Individual Container For Each Substrate, Packed In Bag Filled With Inert Gas.
Packaging Details:

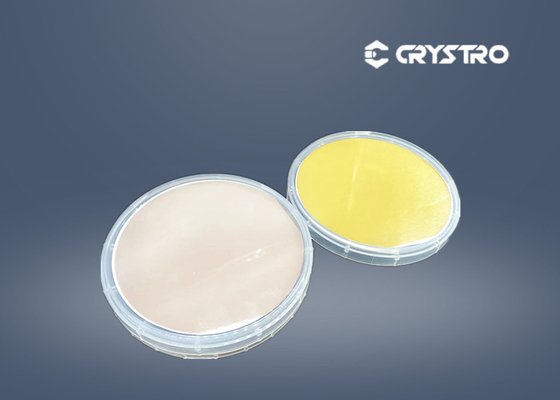

Transparent clean box
Supply Ability:
2000pcs per month
Highlight:

Photorefractive LiTaO3 Wafer

,

Doped LiTaO3 Wafer

,

Yellow Piezoelectric Effect Crystals

Product Description

Yellow Black Fe2O3 Doped LiTaO3 Wafer Used for Photorefractive Applications​



LiTaO3 is an E-O crystal widely used for E-O devices, due to its good optical NLO and E-O properties, as well as high damage threshold.



Fe doped congruent LiTaO3 were grown by Czochralski method. By doping different concentrations of Fe2O3 in LiTaO3 crystal, Test results show that the lattice constant increases with the increase of Fe2O3 content. This result indicates a better Photorefractive property of Fe:LiTaO3 than undoped LiTaO3.


CRYSTRO supplies high quality LiTaO3 boules,ingots and wafers with the following specifications for standard applications,diameter upon to 6 inch. We can also offer other specifications upon request.


Other Piezo crystals like LN,Quartz are also available.

Yellow Black Fe2O3 Doped LiTaO3 Wafer Used For Photorefractive 0

Crystro can offer:



Diameter 76.2±0.2mm 100±0.2mm 150±0.2mm
Primary Flat 22±1mm 32±1mm 47.5mm, 57.5mm, Notch
Orientation 36°Y, 42°Y, X-112°Y, Y, Z
Thickness 0.07mm~1.0mm 0.1mm~1.0mm 0.35mm~1.0mm
Surface finish Single / Double side polish / Double side lapped
TTV < 1~5µm
BOW ± (20µm ~40um )
Warp <= 20µm ~ 50µm
LTV (5mmx5mm) <1.5 um
PLTV(<0.5um) ≥98% (5mm*5mm) with 2mm edge excluded
Polished side Ra Roughness Ra<=5A
Back Side Criteria Roughness Ra:0.5-1.0µm, GC#1000
Scratch & Dig (S/D) 20/10, 40/20, 60/40
Edge Profile Compl't with SEMI M1.2@with GC800# .regular at C typed
Cracks, saw marks, stains None



Crystro can offer other size and specification of wafers upon request.


Basic Properties of LiTaO3::



Crystal Structure Trigonal, Space group R3c, Point group 3m
Cell Parameters a=5.154Å, c=13.781Å
Melting Point 1650
Curie Temperature 607
Mohs Hardness 5.5
Density 7.46g/cm3
Dielectric Constants ε11/ε0:51.7
ε33/ε0:44.5
Elastic Stiffness Coefficients CE11:2.33(×1011N/m2)
CE33:2.77(×1011N/m2)
Piezoelectric Strain Constants d22:2.4(×10-11C/N)
d33:0.8(×10-11C/N)
Transmission range 400-4500nm
Electro-optical coefficients r33=30.4pm/V
Refractive index at 632.8nm no=2.176, ne=2.180
