Boule Magneto Optical Crystals TGG With Diameter 3 Inches 76mm

Name: Boule Magneto Optical Crystals TGG With Diameter 3 Inches 76mm
Brand: ANHUI CRYSTRO CRYSTAL MATERIALS Co., Ltd.
SKU: CR210128-02
Price: 12,500.00 USD
Availability: InStock

Brand Name:	Crystro
Model Number:	CR210128-02
MOQ:	1pc
Price:	USD 20000~5000/pc
Delivery Time:	2~4 weeks
Payment Terms:	T/T, Western Union, MoneyGram, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS/COC

Material:

Boule Magneto Optical Crystals TGG Crystal With Diameter 3 Inches 76mm

Diameter:

76.2mm (101.6mm Max)

Place Of Origin:

Anhui, China

Growth Method:

Czochralski Method

Chemical Formula:

Tb3Ga5O12

Orientation:

<111><100>

Brand Name:

Crystro

Pack:

1000 Grade Room,transparent Box

Packaging Details:

Master carton with shockproof pearl cotton

Supply Ability:

50pcs per month

Highlight:

3 Inches Magneto Optical Crystals

76mm Magneto Optical Crystals

Magneto Optical Crystals Dia 3 Inches

Product Description

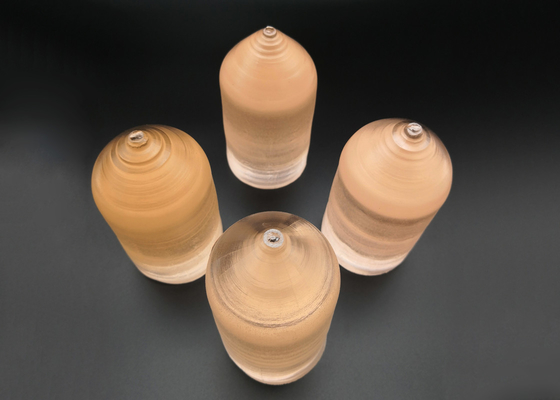

Boule Magneto Optical Crystals TGG Crystal With Diameter 3 Inches 76mm

Crystro Supply TGG Crystal Boule With Diameter 4 Inches.

It is now the biggest size available in China.

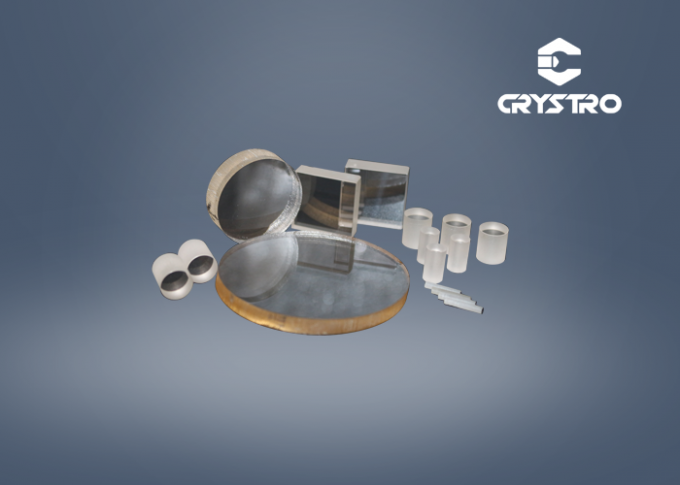

Terbium Gallium Garnet (TGG) Crystal Used for Faraday Isolators and Rotators

TGG is an excellent magneto-optical crystal used in various Faraday devices (Rotator and Isolator) in the range of 400nm-1100nm, excluding 475-500nm.

ROHS TGG-ROHS-ENGLISH.PDF

Main Advantages:

Large Verdet constant (35 Rad T-1m-1).
Low optical losses (<0.1%/cm)
High thermal conductivity (7.4W m-1K-1).
High laser damage threshold (>1GW/cm2).

Main Properties:

Chemical Formula	TB₃Ga₅O₁₂
Lattic Parameter	a=12.355Å
Growth Method	Czochralski
Density	7.13g/cm³
Mohs Hardness	8.0
Melting Point	1725℃
Refractive Index	1.954 at 1064nm

CRYSTRO supply TGG crystal with:

Orientation	[111] within ±15 arc min
Wave Front Distortion	<1/8 wave
Extinction Ratio	>35dB
Diameter Tolerance	+0.00mm/-0.05mm
Length Tolerance	+0.2mm/-0.2mm
Chamfer	0.10mm@45º
Flatness	<1/10 wave at 633nm
Parallelism	< 30 arc Seconds
Perpendicularity	< 5 arc min
Surface Quality	10/5 Scratch/Dig
AR Coating	<0.2%
Large Dimensions of Crystals	2.0--76 mm in diameter

Our Company:

Anhui Crystro has perfect automatic production equipment, the current products are mainly concentrated in the YAG, TGG, TSAG,GGG , LGS,Ce:GAGG ,Ce:YAG andCe: LuYAG production.

the application of advanced process technology of manufacturing,reducing energy consumption to ensure sustainable development field of research and development.

Boule Magneto Optical Crystals TGG With Diameter 3 Inches 76mm 0
