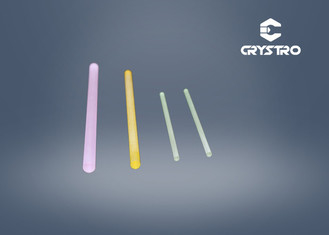

Yttrium Aluminum Garnet Laser Rods Nd YAG Single Crystal Dia 8mm

Brand Name: Crystro
Model Number: CR210630-03
MOQ: 1pc
Price: USD 100-2000/pc
Delivery Time: 3 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
CHINA
Certification:
SGS/COC/ROHS/REACH
Item::
Dia8*185mm Yttrium Aluminum Garnet Laser Rods Nd YAG Single Crystal
Size:
D8X185mm
Size Tolerance:
±0.05mm
Growth Method:
Czochralski
Dimension:
Customized
Polish:
S/D 10/5
Chamfer:
<0.10mm/cm2
Damage Threshold:
>500MW/cm2
Packaging Details:
Gift box or clean box
Supply Ability:
500pcs per month
Highlight:

Nd YAG Single Crystal

,

Dia 8mm Nd YAG Crystal

,

Dia 8mm Single Crystal

Product Description

Dia 8mm Yttrium Aluminum Garnet Laser Rods Nd YAG Single Crystal



Dia8*185mm Yttrium Aluminum Garnet Laser Rods Nd YAG Single Crystal



Nd:YAG is a kind of laser crystal used in solid-state lasers.

Crystro can offer customized dopant and size as required,like 1.1% Nd doped,size D8*150,D6*180...

Neodymium Doped Yttrium Aluminum Garnet – Nd:YAG laser crystals remains to be the most popular material for solid-state laser manufacturing. Good fluorescence lifetime, thermal conductivity and robust nature make Nd:YAG laser crystals suitable for high power continuous wave, high intensity Q-switched and single mode operation.





Features:

  • Its laser parameters are a good compromise between the strengths and weaknesses of its competition.
  • Compared with others laser crystals, its fluorescence lifetime is twice more than Nd:YVO4,and thermal conductivity is also better.



Applications:



  • Nd:YAG can produce blue laser with the frequency-doubling of 946nm
  • Nd:YAG can be operated in a very high power laser up to kw level
  • Nd:YAG can be Q-switched with Cr4+YAG directly



Main Properties:

Chemical Formula  Nd:Y3Al5O12
Lattic Parameter  a=12.01Å
Growth Method  Czochralski
Density  4.5g/cm3
Mohs Hardness  8.5
Melting Point  1970℃
Refractive Index  1.82



CRYSTRO supply Nd:YAG crystal with:

Dimention  Diameter from 3 to 40mm
Nd Dopant level  From 0.3-1.5 atm%
Wave Front Distortion  1/8 wave@632
Diameter Tolerance  ±0.05mm
Length Tolerance  ±0.5mm
Chamfer  0.10mm@45º
Flatness  <1/10 wave at 633nm
Parallelism  < 10 arc Seconds
Perpendicularity  < 15 arc min
Surface Quality  10/5 Scratch/Dig
Clear Apereture  >90%
Damage Threshold  >500MW/cm2
