Magneto Optical Crystals
Created with Pixso. Polish Terbium Gallium Garnet TGG Optical Crystal For Faraday Isolator

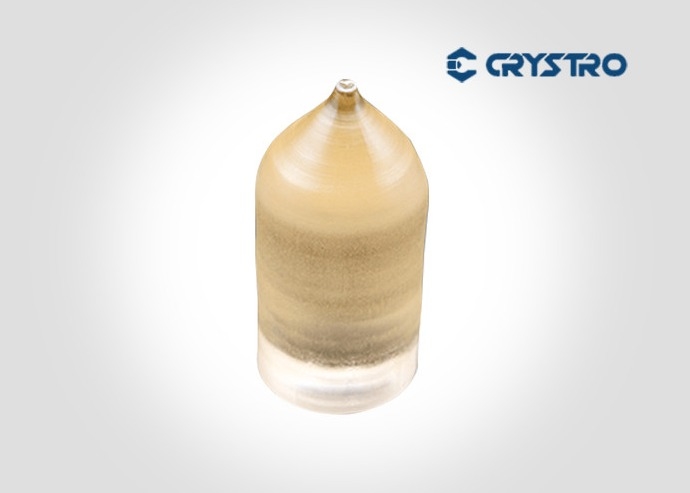

Polish Terbium Gallium Garnet TGG Optical Crystal For Faraday Isolator

Brand Name: Crystro
Model Number: JCR200615-05
MOQ: 1pc
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/ROHS/REACH
Material:
Terbium Gallium Garnet
Diameter Tolerance:
+0/-0.05mm
Isolation:
Up To 40dB
Surface Quality:
10/5 Polish
AR Coating:
R<0.2%
Wave Front Distortion:
<1/8 Wave
Packaging Details:
Transparent clean box
Supply Ability:
10000pcs per week
Highlight:

Polish Terbium Gallium Garnet Crystal

,

TGG Optical Crystal

,

Faraday Isolator TGG Crystal

Product Description

Crystro Terbium Gallium Garnet TGG Best Optical Crystal For Faraday Isolator



Description:



Highly transparent terbium gallium garnet (Tb3Ga5O12; TGG) single crystal having a large Verdet constant based on the visible and near-infrared region (VIS–NIR) Faraday rotator was grown by Floating Zone (FZ) growth machine. We successfully grew TGG single-crystal rods of 8–10 mm in diameter, which was suitable for the use in optical devices. The crystal showed a full-width at half-maximum as little as 18 arcsec by the X-ray rocking curve measurement.



Features:

  • Large Verdet Constant (Typical 35 dB,Up to 40dB)
  • Low optical losses (<0.1%/cm)
  • High thermal conductivity (7.4W m-1K-1).
  • High laser damage threshold (>1GW/cm2).
  • Thermal conductivity is an order of magnitude greater than typical glass.
  • Optical losses are lower for TGG than Tb-doped glasses



Applications:

  • Faraday Rotator;

  • Optical Isolator.

  • Magnetic sensor



Main Properties:

Chemical Formula TB3Ga5O12
Lattic Parameter a=12.355Å
Growth Method Czochralski
Density 7.13g/cm3
Mohs Hardness 8.0
Melting Point 1725℃
Refractive Index 1.954 at 1064nm





CRYSTRO supply TGG crystal with:



Orientation [111] within ±15 arc min
Wave Front Distortion <1/8 wave
Extinction Ratio >35dB
Diameter Tolerance +0.00mm/-0.05mm
Length Tolerance +0.2mm/-0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 5 arc min
Surface Quality 10/5 Scratch/Dig
AR Coating <0.2%
Large Dimensions of Crystals 2.0--76 mm in diameter
