Magneto Optical Crystals
Created with Pixso. Terbium Gallium Garnet TGG High Transparent And Isolation Crystal

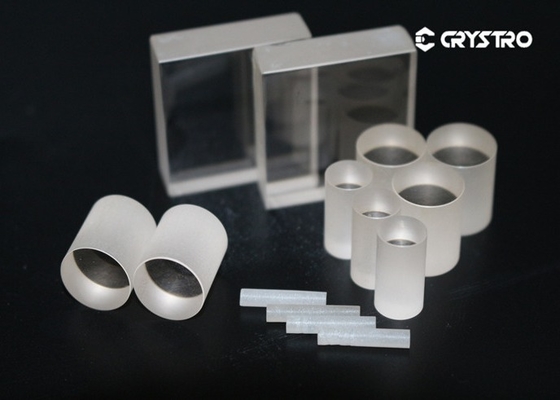

Terbium Gallium Garnet TGG High Transparent And Isolation Crystal

Brand Name: Crystro
Model Number: JCR200615-05
MOQ: 1pc
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/ROHS/REACH
Product Name:
Terbium Gallium Garnet
Formula:
Tb3Ga5O12
High Isolation:
Up To 40dB
Surface Quality:
10/5 Polish
AR Coating:
R<0.2%
Wave Front Distortion:
<1/8 Wave
Application:
Faraday Rotator Isolator
MOQ:
1
Packaging Details:
Transparent clean box
Supply Ability:
10000pcs per week
Highlight:

Terbium Gallium Garnet High Transparent Crystal

,

Transparent TGG Crystal

,

Transparent Magneto Optical Crystals

Product Description

Crystro Terbium Gallium Garnet TGG High Transparent And Isolation Crystal



Description:

TGG crystal Terbium Gallium Garnet is an essential magneto-optical crystal l for faraday polarizer. Faraday polarizer is composed of the TGG crystal rod and a specially designed magnet. The polarization of the beam through the magneto-optical materials deflexed and direction of the deflection only has some relations with the direction of the magnetic field and has nothing to do with the direction of the beam propagation. An optical isolator is an optical component which allows the transmission of polarized light in only one direction.



Features:

  • Large Verdet Constant (Typical 35 dB,Up to 40dB)
  • Low optical losses (<0.1%/cm)
  • High thermal conductivity (7.4W m-1K-1).
  • High laser damage threshold (>1GW/cm2).
  • Thermal conductivity is an order of magnitude greater than typical glass.
  • Optical losses are lower for TGG than Tb-doped glasses



Applications:

  • Faraday Rotator;

  • Optical Isolator.

  • Magnetic sensor



Main Properties:

Chemical Formula TB3Ga5O12
Lattic Parameter a=12.355Å
Growth Method Czochralski
Density 7.13g/cm3
Mohs Hardness 8.0
Melting Point 1725℃
Refractive Index 1.954 at 1064nm





CRYSTRO supply TGG crystal with:



Orientation [111] within ±15 arc min
Wave Front Distortion <1/8 wave
Extinction Ratio >35dB
Diameter Tolerance +0.00mm/-0.05mm
Length Tolerance +0.2mm/-0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 5 arc min
Surface Quality 10/5 Scratch/Dig
AR Coating <0.2%
Large Dimensions of Crystals 2.0--76 mm in diameter
